Han Power S

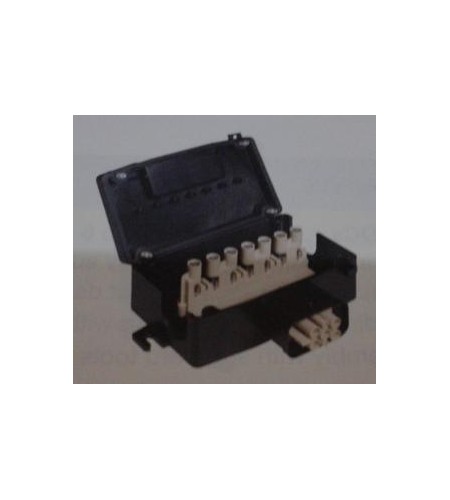

Gambar Produk
Han Power S
Update Terakhir
27-10-2017
Minimum Pembelian
1 unit
Dilihat Sebanyak
85 kali
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Han Power S
Han power
Features
- 6 IDCs + PE for 2.5 mm up to 6 mm wire gauge
- No interuption of the energy supply
- Space saving and compact design
- Leading protective ground within the insert
- Assembly with standard tools
Technical characteristics
Han Power S
Number of contacts
- Power contacs : 4 + PE
- Signal contacs : 2
Electrical data acc to EN 61 984
Power side 40A 400/690V 6kV 3
Rated current : 40A
Rated voltage conductor -ground : 400V
Rated voltage conductor - conductor 690V
Rated impulse voltage 6 kV
Pollution degree 3
Signal side
Rated current : 10A 250V 4kV 3
Rated voltage : 10A
Rated impulse voltage 4kV
Pollution degree : 3
Rated voltage
acc. to UL/CSA 600 / 250 V
Insulation resistance > 10
Material : polycarbonate
Limiting temperatures -40 C ..... +125C
Flammability acc. to UL 94 V 0
Mechanical working life
- mating cycles > 500
Degree of protection acc. to DIN EN 60 529 IP 65
Contacs
Material copper alloy
Surface
- hard-silver plated 3 um Ag
- hard - gold plated 2 um Au over 3 um Ni
Contact resistance < 0.3m
Crimp terminal
- mm2 2.5 .... 6 mm2/ 0.14 .... 2.5 mm2
-AWG 14 ... 10/26 ... 14
Max. insulation diameter
-Power contacs : 5 mm
Cables
Design of conductoracc. to DIN VDE 0281
DIN EN 60 228
Single strand
Wire gauge : 2.5 mm2
- Number of single strands : 50 x 0.25
- Outer diameter 3.6 mm
Wire gauge
- Number of single strand 56 x 0.3 mm
- Outer diameter 4.2 mm
Wire gauge
- Number of single strands 84 x 0.3 mm
- Outer diameter 4.8 mm
Type : Han power S with 2x Han Q4/2, Han power S with 1x Han Q4/2 with power supply 24V, Han power S with 1 x Han Q 4/2 with maintenance switch, Han-Power S with functional LED Display and on/off switch, Han-power S with 1x Han Q 8/0, Han power S with 2x Han Q 8/0, Han -power S with 1x Han Q 4/2, metal.
Features
- 6 IDCs + PE for 2.5 mm up to 6 mm wire gauge
- No interuption of the energy supply
- Space saving and compact design
- Leading protective ground within the insert
- Assembly with standard tools
Technical characteristics
Han Power S
Number of contacts
- Power contacs : 4 + PE
- Signal contacs : 2
Electrical data acc to EN 61 984
Power side 40A 400/690V 6kV 3
Rated current : 40A
Rated voltage conductor -ground : 400V
Rated voltage conductor - conductor 690V
Rated impulse voltage 6 kV
Pollution degree 3
Signal side
Rated current : 10A 250V 4kV 3
Rated voltage : 10A
Rated impulse voltage 4kV
Pollution degree : 3
Rated voltage
acc. to UL/CSA 600 / 250 V
Insulation resistance > 10
Material : polycarbonate
Limiting temperatures -40 C ..... +125C
Flammability acc. to UL 94 V 0
Mechanical working life
- mating cycles > 500
Degree of protection acc. to DIN EN 60 529 IP 65
Contacs
Material copper alloy
Surface
- hard-silver plated 3 um Ag
- hard - gold plated 2 um Au over 3 um Ni
Contact resistance < 0.3m
Crimp terminal
- mm2 2.5 .... 6 mm2/ 0.14 .... 2.5 mm2
-AWG 14 ... 10/26 ... 14
Max. insulation diameter
-Power contacs : 5 mm
Cables
Design of conductoracc. to DIN VDE 0281
DIN EN 60 228
Single strand
Wire gauge : 2.5 mm2
- Number of single strands : 50 x 0.25
- Outer diameter 3.6 mm
Wire gauge
- Number of single strand 56 x 0.3 mm
- Outer diameter 4.2 mm
Wire gauge
- Number of single strands 84 x 0.3 mm
- Outer diameter 4.8 mm
Type : Han power S with 2x Han Q4/2, Han power S with 1x Han Q4/2 with power supply 24V, Han power S with 1 x Han Q 4/2 with maintenance switch, Han-Power S with functional LED Display and on/off switch, Han-power S with 1x Han Q 8/0, Han power S with 2x Han Q 8/0, Han -power S with 1x Han Q 4/2, metal.
