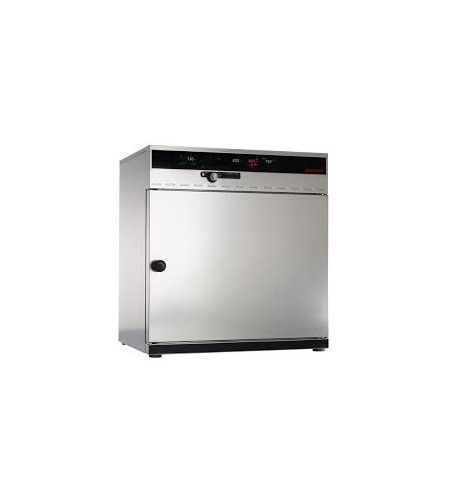

MEMMERT Humidity chamber HCP246
Gambar Produk
MEMMERT Humidity chamber HCP246
Update Terakhir
06-06-2016
Dilihat Sebanyak
75 kali
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi MEMMERT Humidity chamber HCP246
Properties
Control of standard components
| Temperature | 2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value |
|---|---|
| Humidity | active humidifying and de-humidifying control (20-95 %) with digital display of relative humidity - resolution of display 0.5 %, setting accuracy 1 % |
| Humidity | humidity supply with distilled water from external tank by self-priming pump |
| Humidity | active humidifying and de-humidifying adjustable from 20-95 % rh with digital display of relative humidity - resolution of display 0.5 %, setting accuracy 1 % |
| Humidity | humidity supply with distilled water from external tank by self-priming pump |
| Humidity | humidification by hot steam generator |
| Controller | digital display of all set parameters, such a temperature, weekdays, time, CO2, humidity and set-up values - language to be chosen via set-up |
| Controller | Electronic microprocessor temperature controller with auto-diagnostic system |
| Timer | integrated timer for tempering profiles of up to 40 ramps each, each segment adjustable from 1 min. to 999 hrs. |
| Timer | digital 7-day programme timer with real time clock, precise minute setting |
Temperature
| resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C and for actual values 0.1°C (LED) | |
| with humidity min. 8°C above ambient up to +90°C | |
| without humidity min. 8°C above ambient up to +160°C |
Control technology
| Calibration | three freely selectable temperature values |
|---|
Ventilation
| uniform atmosphere and temperature distribution owing to enclosed non-turbulent ventilation system in working chamber |
|---|
Communication
| Interface | USB-interface incl. Memmert software "Celsius" for programming and documentation |
|---|---|
| Documentation | integrated ring memory as data logger for GLP-conforming long-term documentation of all relevant parameters - 1024 kB |
| Documentation | programme stored in case of power failure |
| Documentation | parallel printer interface (incl. real time clock with date function) for all PCL3-compatible ink jet printers for GLP-conforming documentation |
| Programming | chip-card control incl. 1 MEMoryCard XL with 32 kB storage capacity (max. 40 ramps) |
Safety
| Temperature control | mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 10°C above nominal temperature |
|---|---|
| Temperature control | overtemperature monitor TWW, protection class 3.1 or adjustable temperature limiter TWB, protection class 2, selectable on display |
| AutoSAFETY | additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature |
| Autodiagnostic system | integral fault diagnostics for temperature and humidity control |
| Alarm | with visual and acoustic alarm in case of over-/under temperature and underhumidity, open door and empty water tank |
| Alarm | visual and acoustic |
Heating concept
| large-area multi-function heating system on four sides with additional door and back heating to avoid condensation |
|---|
Standard equipment
| Scope of delivery | 2nd chip-card (STERICard) for sterilisation of working chamber with fixed values (4 hours/160°C) without removal of sensors |
|---|---|
| Scope of delivery | incl. works calibration certificate for +60°C |
| Door | fully insulated stainless steel door with 2-point locking (compression door lock), lockable |
| Door | inner glass door |
| Housing | rear zinc-plated steel |
| Interior | easy-to-clean interior,made of stainless steel,reinforced by deep drawn ribbing, material 1.4301 (ASTM 304), hermetically welded |
| Internals | 2 perforated stainless steel shelves |
Stainless steel interior
| Dimensions W x H x D in mm | w(A) x h(B) x d(C): 640 x 640 x 600 mm |
|---|---|
| Volume | 246 l |
Textured stainless steel casing
| w(D) x h(E) x d(F): 790 x 938 x 750 mm |
Electrical data
| Voltage Electrical load | 230 V, 50/60 Hz approx. 2000 W |
|---|
Packing/shipping data
| the appliances must be transported upright | |
|---|---|
| Customs tariff number | 8419 8998 |
| Country of origin | Federal Republic of Germany |
| WEEE-Reg.-No. | DE 66812464 |
| Dimensions approx incl. carton | B x H x T: 930 x 1140 x 930 mm |
| Net weight | approx. 110 kg |
| Gross weight carton | approx. 132 kg |
