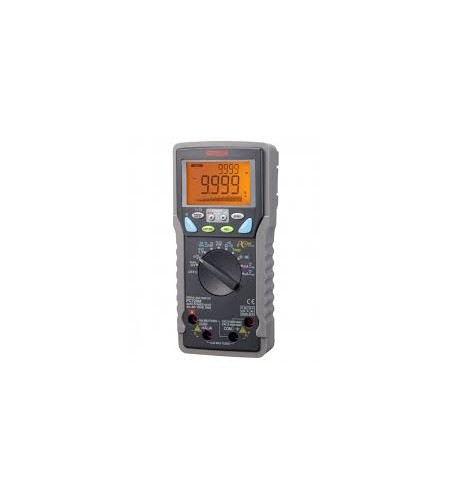

sanwa PC720M
Perhatian!
Spesifikasi sanwa PC720M
Basic Features
■AC True RMS
■Dual display with backlight
■Automatic measurement for ACV/DCV/Ω under low impedance
■High speed bar graph
■Capacitance measurement
※Not suitable for measurement of condensers with large leak current.■K type temperature -50℃〜1000℃
※Optional accessory K-AD is necessary.
※K type temp. sensor K-250PC is included as a standard accessory.
■Frequency measurement (AC sine wave only)
■Logic frequency measurement, duty cycle
measurement
■Conductance measurement
■MAX, MIN, MAX-MIN recording mode
■Capture (peak hold) 1ms in duration
■Data hold, Range hold
■Relative value
■Auto power saving mode (30min.) (cancelable)
■Optical Link USB interface (optional)
Data Logging Mode
■87,328 data points in built-in memory
(single display)
43,664 data points in built-in memory
(dual display)
■Selection of measurement interval
0.05s/0.1s/0.5s/1s/2s/3s/4s/5s/10s/15s/30s/
60s/120s/180s/300s/600s
■Auto-standby mode when a sampling speed
of 30s or longer is selected
■Export logged data to PC
※Optional accessory PC Link7 is necessary.
Display : numeral display 9999 & 6000, bar graph 41 segments
Sampling rate : 5 times/sec., 60 times/sec. for bar graph Max.EN61326-1:2006
■Battery life : Approx. 100h (alkaline battery) at DCV range
Optional Accesories
Software : PC Link7
Optical PC link cable : KB-USB7
Clamp probe : CL-20D, CL-22AD, CL33DC
Temperature probe : T-300PC (PC Link software is necessary.) K-8-250〜800
K type adapter : K-AD
Test lead : TL-21M, TLF-120
Carrying case : C-PC7
Clip adapter : CL-13a, CL-14,CL-15a, CL-DG3a, TL-9IC
