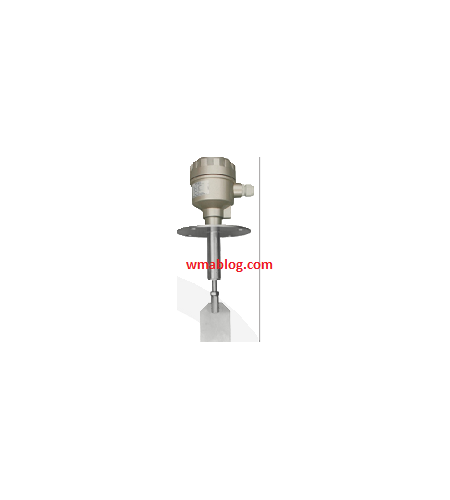

High Temperature Paddle Level switch SR2-20F

Update Terakhir
26-10-2017
Minimum Pembelian
1 unit
Dilihat Sebanyak
183 kali
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi High Temperature Paddle Level switch SR2-20F

High Temperature Rotary Paddle Level Switch

Model : SR2-20F
Power Supply : 220VAC (Optional 110VAC 24VAC,24 VDC)
Contact Capacity : 250VAC/5A,SPDT
Medium Temperature max 200derajat celcius~800derajat celcius
Power : 3W
Rotating Speed of Paddle : 1rpm
Material of Paddle : SUS304
Paddle size : 65x100mm
Electrical Connection : M20X1.5
Specific Gravity of Material :>/0.4/cm3
Installation M,ethode : Horizontal or Vertical Installation

PRODUCT FEATURE :
Highly integreted mechanical sealing which prevent infiltration of powder along the axle,special paddle can be applied for materials of low density.
Specific elastic clutch structure,when the paddle is overloaded, it will automacally protect th emotor.Completely separate mechanic and electrical structure with no need of dismantling and convennient for maintanance.

APPALICATIONS :
Widely applied for manufacturing and procesing instruments in field of food,feed stuff,coment,plastic procesing,infrastucture,chemical and chemical fiber industry etc

WORKING PRINCIPLE :
On the basis the motors drivesthe paddle to rotate, when the medium measured increases up to the level of the paddle position,the paddle will stop rotating for the obstruction of the medium, then there will output ON or OFF contact signal through related control structure when the medium decreases lower than the paddle position the paddle under the force of the spring will restore to the normal position to rotate and detect the position changes of medium.
