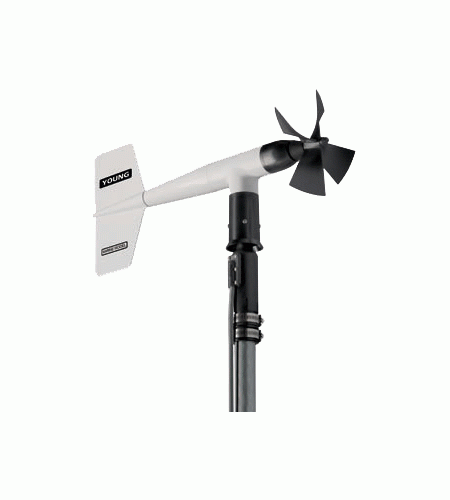

RM- YOUNG Marine Wind Monitor Model 05106
Perhatian!
Spesifikasi RM- YOUNG Marine Wind Monitor Model 05106
Range:
Wind speed: 0-100 m/s (224 mph)
Azimuth: 360° mechanical, 355° electrical (5° open)
Accuracy:
Wind speed: ± 0.3 m/s (0.6 mph) or 1% of reading
Wind direction: ± 3 degrees
Threshold:* Propeller: 1.1 m/s (2.4 mph) Vane: 1.1 m/s (2.4 mph)
Signal Output:
Wind speed: magnetically induced AC voltage, 3 pulses per revolution. 1800 rpm (90 Hz) = 8.8 m/s (19.7 mph)
Azimuth: analog DC voltage from conductive plastic potentiometer − resistance 10K Ω , linearity 0.25%, life expectancy − 50 million revolutions
Power Requirement:
Potentiometer excitation: 15 VDC maximum
Sensor Cable:
A 3 meter (9.8 ft) pigtail cable is supplied for electrical connections.
For longer cable lengths a user supplied junction box or connector may be used.
Dimensions:
Overall height: 37 cm (14.6 in)
Overall length: 55 cm (21.7 in)
Propeller: 18 cm (7 in) diameter
Mounting: 34 mm (1.34 in) diameter (standard 1 inch pipe)
Weight:
Sensor weight: 1.0 kg (2.2 lbs)
Shipping weight: 2.3 kg (5 lbs)
MODEL 05603C, Wind Sensor Interface (0-5 VDC outputs)
Power Requirement: 8-24 VDC (5 mA @ 12 VDC)
Operating Temperature: -50 to 60°C
Output Signals: 0-5.00 VDC full scale
MODEL 05631C, Wind Line Driver (4-20 mA outputs)
Power Requirement: 12-30 VDC (40 mA max.)
Operating Temperature: -50 to 60°C
Output Signals: 4-20 mA full scale
