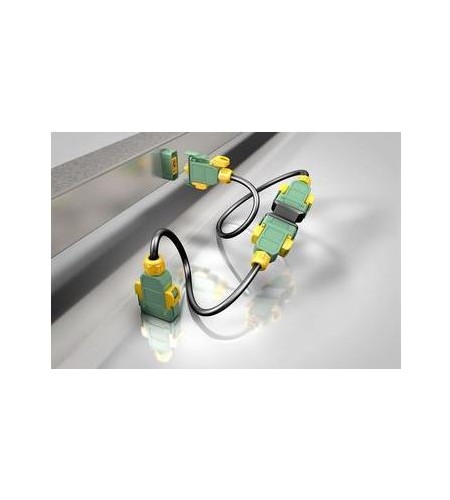

Han® GND – the First Connector for Grounding Systems
Gambar Produk
Han® GND – the First Connector for Grounding Systems
Update Terakhir
27-10-2017
Minimum Pembelian
1 unit
Dilihat Sebanyak
72 kali
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Han® GND – the First Connector for Grounding Systems
Han® GND
Features
Features
. New: First connector for potential equalization
• Slim, space saving design
• Low cost plastic hoods and housings
. Colours: green and yellow
• Separate axial screw contacts can be terminated
without any special tools directly to the wire
Technical characteristicsSpecifications DIN EN 60 664-1
DIN EN 61 984
Hoods/Housings
Hoods/Housings
Material
- hoods/housings polycarbonate
- seal NBR
- cable seal polyamide
Limiting temperatures -40 °C ... +85 °C
Flammability acc. to UL 94 V 0
Degree of protection
according to DIN EN 60 529
for coupled connectors IP 65
Mechanical working life ≥ 500 mating cycles
Cable diameter 7.5 - 14 mm
Modules
Number of contacts 1
Material polycarbonate
Limiting temperatures -40 °C ... +125 °C
Flammability acc. to UL 94 V 0
Mechanical working life ≥ 500 mating cycles
Crimp Contacts
Material copper alloy
Surface
- hard-silver plated 3 µm Ag
Contact resistance ≤ 0.3 mΩ
Crimp terminal
- wire gauge1) 10 ... 35 mm²
Axial Screw Contacts
Material copper alloy
Surface
- hard-silver plated 3 µm Ag
Contact resistance ≤ 0.3 mΩ
Screw terminal
- wire gauge1) 10 ... 35 mm²
- AWG 6 ... 2
- hexagonal driver SW 4
- tightening torque
