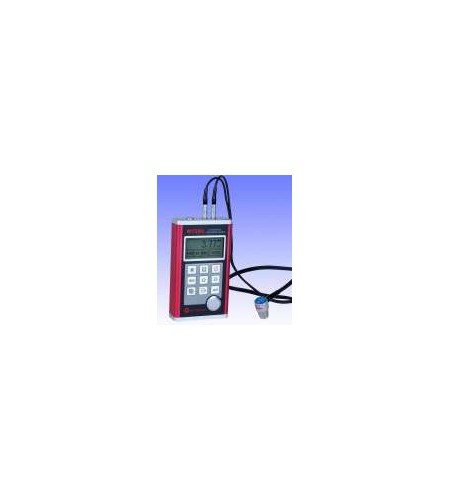

Mitech MT200 Ultrasonic Thickness Gauge
Gambar Produk
Mitech MT200 Ultrasonic Thickness Gauge
Update Terakhir
08-06-2016
Dilihat Sebanyak
78 kali
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Mitech MT200 Ultrasonic Thickness Gauge
Basic Info
APPENDIX A: TRANSDUCER SELECTION
APPENDIX B: SOUND VELOCITY IN DIFFERENT MATERIALS
- Model NO.: MT200
- Trademark: MITECH
- Specification: ISO9000, CE
- Origin: Beijing, China (Mainland)
- HS Code: 9031809090
Product Description
Capable of performing measurements on a wide range of material.
Four transducer models.
Probe-Zero function, Sound-Velocity-Calibration function.
Two-Point Calibration function.
Two work modes: Single point mode and Scan mode.
Coupling status indicator showing the coupling status.
Auto sleep and auto power off function to conserve battery life.
Optional software to process the memory data on the PC.
Optional thermal mini-printer to print the measured data via RS232 port.
SPECIFICATION
Display: 128× 64 DOT matrix LCD with EL backlight.
Measuring Range: 0.75~300mm (in Steel).
SoundVelocity Range: 1000~9999 m/s.
Resolution: 0.1/0.01mm(selectable).
Accuracy: ± (0.5%Thickness+0.04)mm
Units: Metric/English unit selectable.
Four measurements readings per second for single point measurement, and ten per second for Scan Mode.
Memory for 20 files (up to 99 values for each file) of stored values.
Upper and lower limit can be pre-set. It will alarm automatically when the result value exceeding the limit.
Power Supply: Two "AA" size, 1.5 volt alkaline batteries. 100 hours typical operating time (EL backlight off).
Communication: RS232 serial port.
Case: Extruded aluminum body suitable for use under poor working conditions.
Key words: NDT, hardness, thickness, detecor, leeb, flaw, test, instrumenst, measure
Four transducer models.
Probe-Zero function, Sound-Velocity-Calibration function.
Two-Point Calibration function.
Two work modes: Single point mode and Scan mode.
Coupling status indicator showing the coupling status.
Auto sleep and auto power off function to conserve battery life.
Optional software to process the memory data on the PC.
Optional thermal mini-printer to print the measured data via RS232 port.
SPECIFICATION
Display: 128× 64 DOT matrix LCD with EL backlight.
Measuring Range: 0.75~300mm (in Steel).
SoundVelocity Range: 1000~9999 m/s.
Resolution: 0.1/0.01mm(selectable).
Accuracy: ± (0.5%Thickness+0.04)mm
Units: Metric/English unit selectable.
Four measurements readings per second for single point measurement, and ten per second for Scan Mode.
Memory for 20 files (up to 99 values for each file) of stored values.
Upper and lower limit can be pre-set. It will alarm automatically when the result value exceeding the limit.
Power Supply: Two "AA" size, 1.5 volt alkaline batteries. 100 hours typical operating time (EL backlight off).
Communication: RS232 serial port.
Case: Extruded aluminum body suitable for use under poor working conditions.
Key words: NDT, hardness, thickness, detecor, leeb, flaw, test, instrumenst, measure
| No | Item | Quantity | Note | |
| Standard Configuration | 1 | Main body | 1 | |
| 2 | Transducer | 1 | Model: N05/90° | |
| 3 | Couplant Bottle | 1 | ||
| 4 | Instrument Case | 1 | ||
| 5 | Screwdriver | 1 | ||
| 6 | Alkaline battery | 2 | AA size | |
| 7 | Operating Manual | 1 | ||
| 8 | Warranty Card | 1 | ||
| Optional Configuration | 9 | Transducer: N02 | See Table3-1 | |
| 10 | Transducer: N07 | |||
| 11 | Transducer: HT5 | |||
| 12 | Mini thermal printer | 1 | ||
| 13 | Print cable | 1 | ||
| 14 | DataPro for Thickness Gauge | 1 | For use on the PC | |
| 15 | Communication Cable | 1 |
APPENDIX A: TRANSDUCER SELECTION
| Model | Freq MHZ |
Diam mm |
Measuring Range | Lower limit | Description |
| N02 | 2.5 | 14 | 3.0mm~300.0mm(In Steel) 40mm (in Gray Cast Iron HT200 ) |
20 | for thick, highly attenuating, or highly scattering materials |
| N05 | 5 | 10 | 1.2mm~230.0mm(In Steel) | Φ 20mm× 3.0mm | Normal Measurement |
| N05/90° | 5 | 10 | 1.2mm~230.0mm(In Steel) | Φ 20mm× 3.0mm | Normal Measurement |
| N07 | 7 | 6 | 0.75mm~80.0mm (In Steel) |
Φ 15mm× 2.0mm | For thin pipe wall or small curvature pipe wall measurement |
| HT5 | 5 | 12 | 3~200mm (In Steel) | 30 | For high temperature (lower than 300° C ) measurement. |
APPENDIX B: SOUND VELOCITY IN DIFFERENT MATERIALS
| Material | Sound Velocity | |
| In/us | m/s | |
| Aluminum | 0.250 | 6340-6400 |
| Steel, common | 0.233 | 5920 |
| Steel, stainless | 0.226 | 5740 |
| Brass | 0.173 | 4399 |
| Copper | 0.186 | 4720 |
| Iron | 0.233 | 5930 |
| Cast Iron | 0.173-0.229 | 4400-5820 |
| Lead | 0.094 | 2400 |
| Nylon | 0.105 | 2680 |
| Silver | 0.142 | 3607 |
| Gold | 0.128 | 3251 |
| Zinc | 0.164 | 4170 |
| Titanium | 0.236 | 5990 |
| Tin | 0.117 | 2960 |
| Epoxy resin | 0.100 | 2540 |
| Ice | 0.157 | 3988 |
| Nickel | 0.222 | 5639 |
| Plexiglass | 0.106 | 2692 |
| Polystyrene | 0.092 | 2337 |
| Porcelain | 0.230 | 5842 |
| PVC | 0.094 | 2388 |
| Quartz glass | 0.222 | 5639 |
| Rubber, vulcanized | 0.091 | 2311 |
| Teflon | 0.056 | 1422 |
| Water | 0.058 | 1473 |
