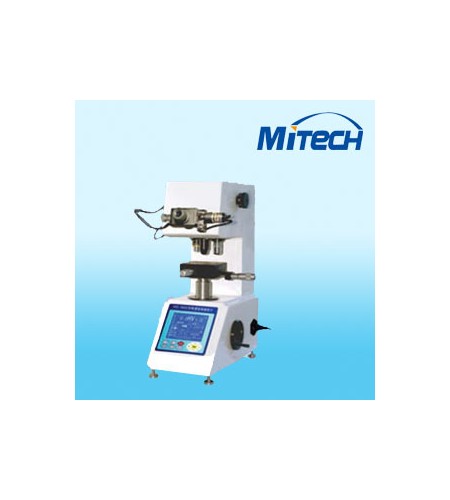

Mitech (HVS-1000) Digital Micro Vickers Hardness Tester
Perhatian!
Spesifikasi Mitech (HVS-1000) Digital Micro Vickers Hardness Tester
- Model NO.: HVS-1000
- Trademark: Mitech
- Origin: Beijing, China (Mainland)
- HS Code: 902410200
Exchanging Scales Rockwell, Superficial Rockwell, Brinell
Min Measuring Unit 0.031μ M
Magnification of Microscope 100X(For Observation) 400X(For Measurement)
Data Output Inside Printer and RS-232 Interface
Dutation Time 0~60 sec selectable, In step of 5 sec
Loading Control Automatically (load, keep, unload)
Overall Dimension 405*290*480mm
Net Weight 25kg
Max Height of Speciment 85mm.
Testing Force | 10gf (0.098N),25gf (0.245N),50gf (0.49N),100gf (0.98N ), 200gf (1.96N),300gf (2.94N),500gf (4.9N),1000gf (9.8N) |
Exchanging Scales | Rockwell,Superficial Rockwell,Brinell |
Min Measuring Unit | 0.031μm |
Magnification of Microscope | 100X(For Observation) 400X(For Measurement) |
Data Output | Inside Printer and RS-232 Interface |
Dutation Time | 0~60 sec selectable,In step of 5 sec |
Loading Control | Automatically (load, keep, unload) |
Overall Dimension | 405×290×480mm(L×W×H) |
Net Weight | 25kg |
Max Height of Speciment | 85mm |
Max depth of speciments | 95mm |
Power Supply | AC220V±5%,50~60Hz |
Carried Standard | GB/T4340(1.2) Chinese Standard |
Standard Accessories | Objectives 40x and 10x, Vickers Indenter, Microscope 10x, Standard Hardness Brocks: 2 pcs, Thin Specimen Testing Table, Column Testing Table, Forcipate Testing Table, Lever, Power Cable, Assistant Tools, etc |
