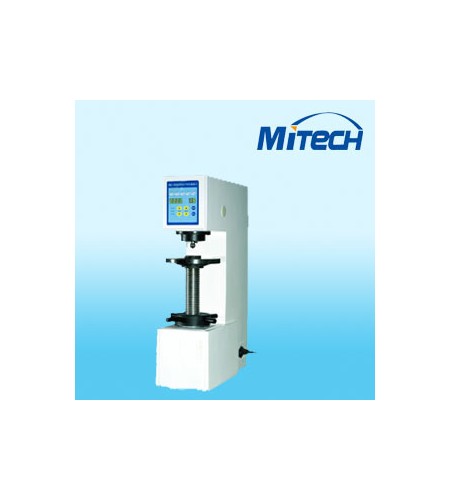

Mitech (HBE-3000) Electronic Brinell Hardness Tester
Perhatian!
Spesifikasi Mitech (HBE-3000) Electronic Brinell Hardness Tester
- Model NO.: HBE-3000
- Trademark: Mitech
- Origin: Beijing, China (Mainland)
- HS Code: 902410200
Brinell hardness test which adopts heavy testing force and shows large indentation is apply to measure hardness value for big grain metal materials such as casting parts, nonferrous metals and alloy, various tempered steel, hardening and tempering steel, specially for soft metal such as pure aluminum, lead, tin, etc.
| Brinell Scale | HBW2.5/62.5, HBW2.5/187.5, HBW5/125 HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500 HBW10/3 |
| Testing Force | 62.5kgf(612.9N), 100kgf (980.7N), 125kgf (1226N), 187.5kgf (1839N), 250kgf 250kgf (2452N), 500kgf (4903N), 750kgf (7355N), 1000kgf (8907N), 1500kgf 1500kgf (14710N), 3000kgf (29420N) |
| Min Measuring Unit | 0.005mm |
| Magnification of Microscope | 20X |
| Duration time | 5~60S |
| Overall Dimension | 550× 210× 750mm |
| Net Weight | 125kg |
| Max Height of Specimen | 230mm |
| Power supply | AC220V± 5%, 50~60Hz |
| Carried Standard | GB/T231.2 Chinese Standard JJG150 Inspection Rule |
| Standard Accessories | A set of Measuring Microscope, Diameter: 2.5, 5 and 10mm Hard Alloy Ball Indenters, 2 pcs Standard Hardness Blocks, Large Testing Table, Medium Testing Table, " V" - shaped Testing Table, Power Cable |
