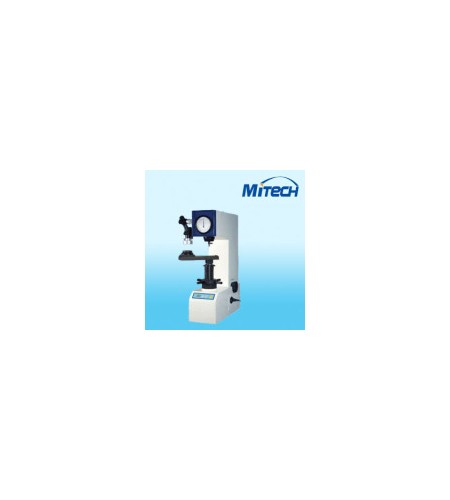

Mitech (HD9-45) Electric Surface Rockwell Vickers Hardness Tester
Perhatian!
Spesifikasi Mitech (HD9-45) Electric Surface Rockwell Vickers Hardness Tester
- Model NO.: HD9-45
- Trademark: MITECH
- Origin: Beijing
- HS Code: 902410200
Usage Range:
Steel, surface hardened steel, copper, aluminum alloy thin sheet, hard alloy steel, zinc layers, chrome layers, tin layers, surface heat treating and chemical treating materials, etc.
| Rockwell Scales Testing Force | HR15N, HR30N,,HR45N,HR15T, HR30T,,HR45T 15kgf (147.1N), 30kgf (294.2N),45kgf(441.3N) |
| Vickers Scales Testing Force | HV5,HV10,HV20,HV30 5kgf (49.03N),10kgf (98.07N),20kgf (196.1N),30kgf (294.2N) |
| Indication of Hardness Value | Superficial Rockwell:Dial Vickers:Measuring Microscope |
| Amplification of Microscope | 75X,150X |
| Duration Time | 1~60sec |
| Overall Dimension | 520×240×700mm(L×W×H) |
| Net Weight | 80kg |
| Max Height of Speciment | Superficial Rockwell: 170mm Vickers:140mm |
| Max depth of speciments | 165mm |
| Power supply | AC220V±5%,50~60Hz |
| Carried Standard | GB/T230(1.2) Chinese Standard GB/T4340(1.2) Chinese Standard |
| Standard Accessories | Rockwell Indenter, Vickers Indenter, Diameter 1.5875mm Hard Alloy Steel Ball Indenter, Measuring Microscope, Objective, a Set of Inside Lights, Large, Medium and V-shaped Testing Table, Slipped Testing Table, Hardness Blocks for Each |
