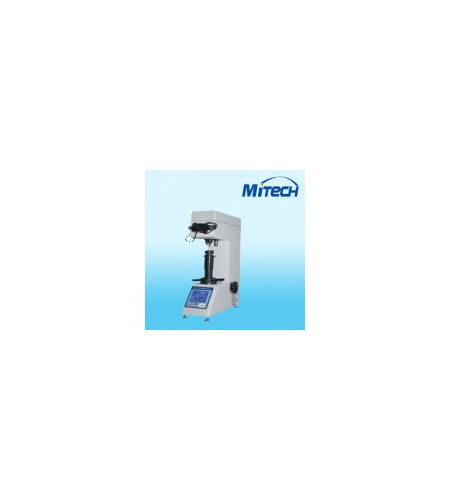

Mitech (HVS-5) Digital Micro Vickers Hardness Tester
Perhatian!
Spesifikasi Mitech (HVS-5) Digital Micro Vickers Hardness Tester
- Model NO.: HVS-5 HVS-10 HVS-30 HVS-50
- Trademark: Mitech
- Origin: Beijing, China (Mainland)
- HS Code: 902410200
Usage Range:
Heat treated layer, carbonized layer, hardened hard layers, superficial coating, steels, non-ferrous metal, micro and thin shaped components.
| TYPE PROJECT | HVS-5 | HVS-10 | HVS-30 | HVS-50 |
| Testing Force | 2.94N(0.3Kgf),4.9N(0.5Kgf), 9.80N(1Kgf),19.6N(2.0Kgf), 29.4N(3.0Kgf),49.0N(5.0Kgf) | 2.94N(0.3Kgf),4.9N(0.5Kgf), 9.80N(1Kgf),29.4N(3Kgf), 49.0N(5Kgf),98.0N(10Kgf) | 9.8N(1.0Kgf),29.4N(3Kgf), 49.0N(5.0Kgf),98N(10Kgf), 196N(20Kgf),294N(30Kgf) | 9.8N(1.0Kgf),49.0N(5.0Kgf), 98N(10Kgf),196N(20Kgf), 294N(30Kgf),490N(50Kgf) |
| Min Measuring Unit | 0.0625μm | 0.0625μm | 0.125μm | 0.125μm |
| Magnification of Microscope | 100X(For Observation) 200X(For Measurement) | 100X(For Observation) 100X(For Measurement) | ||
| Data Output | (Inside Printer and 232 Interface | |||
| Loading Control | Automatically (load, keep, unload) | |||
| Net Weight | 35kg | |||
| Max Height of Speciment | 160mm | |||
| Max depth of speciments | 135mm | |||
| Power Supply | AC220V±5%,50~60Hz | |||
| Carried Standard | GB/T4340(1.2) Chinese Standard | |||
| Standard Accessories | Lens 20x.10x, Vickers indenter ,Digital Measuring eyepiece 10x,Large Testing Table , Medium Testing Table and V shaped Testing Table,Power Cable | Lens 10x, Vickers indenter ,Digital Measuring eyepiece 10x,Large Testing Table , Medium Testing Table and V shaped Testing Table,Power Cable |
||
