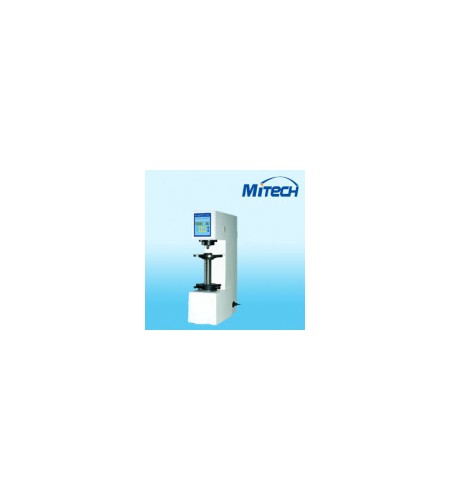

Mitech (HBE-3000A) Electronic Brinell Hardness Tester
Perhatian!
Spesifikasi Mitech (HBE-3000A) Electronic Brinell Hardness Tester
- Model NO.: HBE-3000A
- Trademark: Mitech
- Origin: Beijing, China (Mainland)
- HS Code: 902410200
Usage Range:
Brinell hardness test which adopts heavy testing force and shows large indentation is apply to measure hardness value for big grain metal materials such as casting parts, nonferrous metals and alloy, various tempered steel, hardening and tempering steel, specially for soft metal such as pure aluminum, lead, tin etc.
| Brinell Scale | HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 |
| Testing Force | 62.5kgf(612.9N), 100kgf (980.7N), 125kgf 1226N), 187.5kgf (1839N), 250kgf (2452N), 500kgf (4903N), 750kgf (7355N), 1000kgf (9807N), 1500kgf (14710N), 3000kgf (29420N) |
| Min Measuring Unit | 0.005mm |
| Magnification of Microscope | 20X |
| Dutation Time | 5~60 sec |
| Overall Dimension | 550× 210× 750mm(L× W× H) |
| Net Weight | 125kg |
| Max Height of Speciment | 230mm |
| Max depth of speciments | 135mm |
| Power Supply | AC220V± 5%, 50~60Hz |
| Carried Standard | GB/T231(1.2) Chinese Standard |
| Standard Accessories | A set of Measuring Microscope, Diameter: 2.5, 5 and 10mm Hard Alloy Ball Indenters, 3 pcs Standard Hardness Blocks, Large Testing Table, Medium Testing Table, " V" -shaped Testing Table, Power Cable |
