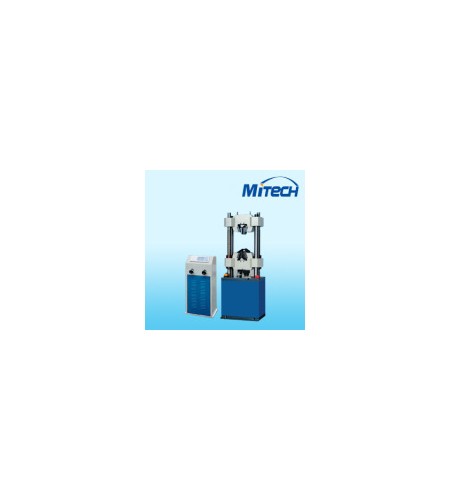

Mitech ME Digital Hydraulic Universal Testing Machine
Perhatian!
Spesifikasi Mitech ME Digital Hydraulic Universal Testing Machine
- Model NO.: Mitech ME
- Trademark: MITECH
- Origin: China
ME series digital hydraulic universal testing machine is mainly applicable for field tests and is used for on-line inspection of ferrous metallurgy, transportation construction, machinery production, construction engineering and electric power fitting etc. It can display testing forces and displacement data, analyze indexes on tensile strength, maximum force and elongation and print testing data if the printer is selected and provided.
II. Functional features
A. Full-travel stepless force measurement, with functions of force protection and break point setting;
B. Function of displaying testing force, testing force peak and testing force rate;
C. It has functions of testing force zeroing, peak holding, parameter setting, calibration and fine tuning;
D. LED high-bright screen is adopted for display with features of simple operation and good understandability;
E. It has functions of storing and restoring to factory settings;
F. Micro printer, achieving the function of printing the test results;
G. Externally-connected photoelectric encoder, achieving the function of high-precision measurement and display of piston displacement.
| Main technical parameters | ME | ||||||||
| 100B | 300B | 600B | 1000B | 1000D | 1000A | ||||
| Maximum testing force (KN) | 100 | 300 | 600 | 1000 | 1000 | 1000 | |||
| Force measuring range | 4%-100% | ||||||||
| Relative error on indicated values of testing force | Better than ±1%of the indicated value | ||||||||
| Deformation precision | ±1% (or ±0.5%) | ||||||||
| Tensile space | 550mm | 600mm | 600mm | 600mm | 700mm | ||||
| Compression space | ≥500mm | 650mm | |||||||
| Clamping type | Manual clamping | Manual clamping/Automatic clamping | |||||||
| Clamping diameter of round specimen (mm) | Φ6-Φ26 | Φ13-Φ40 | Φ13-Φ60 | ||||||
| Clamping thickness of flat specimen | 0-15 mm | 0-30mm | 0-40mm | ||||||
| Diameter of shearing specimen | 10 mm (Alternative) | ||||||||
| Dimension of upper and lower press board | Φ120mm (Alternative 204×204 mm) | ||||||||
| Maximum distance between bending fulcrums | Optional | ||||||||
| Power of oil pump motor | 1.1KW | ||||||||
| Power of beam up-down movement motor | 0.75KW | ||||||||
| Safety protective device | Software protection and mechanical limit protection | ||||||||
| Net weight (Kg) | 1900 | 2100 | 2600 | 3500 | 4000 | ||||
