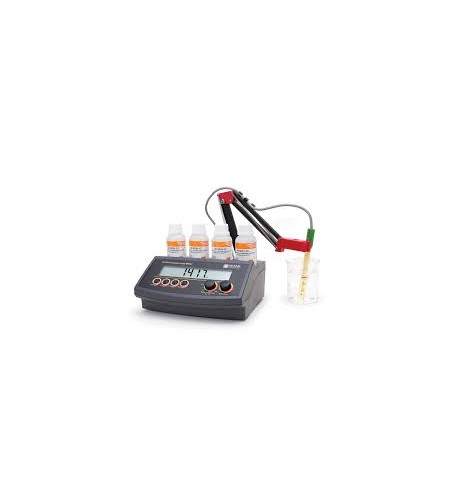

HANNA HI-2315 Conductivity Bench Meter
Perhatian!
Spesifikasi HANNA HI-2315 Conductivity Bench Meter
HI-2315 utilises a four ring potentiometric probe with platinum sensor that offers greater versatility and accuracy over amperometric designs.
A potentiometric probe works on the principal of induction which eliminates the effects of polarisation (a common problem of amperometric systems). Two outer rings apply an alternating voltage and induce a current loop in the solution while two inner rings measure the voltage drop induced by the current loop (which is dependent on the conductivity of the solution). By utilising the 4-ring method, it is possible to measure very low to high conductivity levels (up to 200 mS/cm) without changing probes.
Key features
- Four ring potentiometric platinum probe
- Four measurement ranges
- ±1% F.s. accuracy
- Manual calibration
- Automatic Temperature Compensation
- Large LCD
- Built-in Solution Holders
- Recessed Connector Bay - Protects connectors from liquids.
Ideal for
- Municipal drinking water, environmental studies
- Printing industry - Fountain solution maintenance
- Water Treatment - Boiler/Cooling Tower water quality
- Agriculture - Fertilizer concentration
- Food processing - salt levels in food. (i.e. making pickles)
- Education
Supplied with
HI-76303 Platinum 4-ring potentiometric conductivity probe, 12VDC adapter and instruction manual.
| EC | Range | 0.0 to 199.9 µs/cm, 0 to 1999 µs/cm; 0.00 to 19.99 ms/cm; 0.0 to 199.9 mS/cm |
| Resolution | 0.1 µs/cm; 1 µs/cm; 0.01 mS/cm; 0.1 mS/cm | |
| Accuracy | ±1% F.S. (excluding probe error) | |
| Additional Specifications | Calibration | Manual, one point |
| Temperature Compensation | Automatic, 0 to 50°C with ß adjustable from 0 to 2.5%/°C for EC and from 2 to 7%/°C for Resistivity | |
| Probe | HI-76303, platinum four ring EC with internal temperature sensor, Din connector and 1 m (3.3') cable (included) | |
| Power Supply | 12 VDC adapter (included) | |
| Environment | 0 to 50°C; RH max 95% non-condensing | |
| Weight | 1.3 kg | |
| Dimensions | 235 x 222 x 109 mm |
