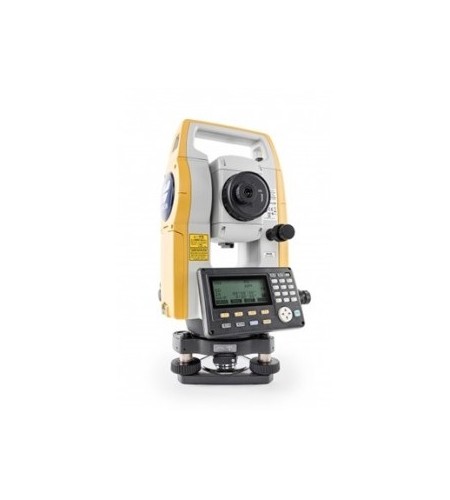

Jual Total Station TOPCON ES 55 SERIES
Gambar Produk
Jual Total Station TOPCON ES 55 SERIES
Update Terakhir
11-06-2016
Minimum Pembelian
1 Set
Dilihat Sebanyak
68 kali
Lokasi
Harga
Rp. 62.000.000
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Jual Total Station TOPCON ES 55 SERIES
Topcon Es 55 “5” Call 081333102011
Specifications for the Topcon ES 55 5 Second Reflectorless Total Station
|
General
|
|
| Weight | 12.3 lbs (5.6 kg) |
| Dimensions | 7.5 in x 6.8 in x 13.7 in (19.1 cm x 17.4 cm x 34.8 cm) |
| Warranty | 2-year |
| Protection Class | IP66 (dust proof and powerful water jets and heavy seas resistant) |
| Tripod Thread | 5/8 x 11 in. |
| Internal Memory | 5,000 points |
| Software | On-board |
| Guide Light | yes |
|
Angle Measurement
|
|
| Accuracy | 5-second |
|
Distance Measurement
|
|
| Unit of Measure (distance display) | m/ft/in. |
| EDM Accuracy (Precision) | ±(2mm + 2ppm x D) for prism; ±(3mm + 2ppm x D) for no prism |
| Minimum Reading | 350 m (1,148 ft) |
|
Tilt Sensor/Compensator
|
|
| Range | ± 6 |
| Type | Dual axis liquid |
|
Battery/Power
|
|
| Power Source | Rechargeable Li-ion battery |
| Battery Life | 15 hours |
| Battery Life Alert | yes |
| Voltage | 7.2v |
|
Optical Plummet
|
|
| Magnification | 3x |
|
Level
|
|
| Circular Bubble Vial | 10 minutes per division/(2 mm) |
|
Telescope
|
|
| Length of Tube | 6.7 in (17.1 cm) |
| Image | Erect |
| Diameter of Objective Lens (Aperture) | 1.9 in (48mm) EDM |
| Magnification | 30x |
| Field of View | 1 degree 30 arcmin |
| Resolving Power | 2.5 arcsec |
| Minimum Focus Distance | 1.3 m (4.3 ft) |
| Reticle Illumination | 5 brightness levels |
| Reflectorless | yes |
|
Display and Keypad
|
|
| Type | Graphic LCD |
| Sides | Single |
| Keys | Alphanumeric |
| Backlight | yes |
| Pixels | 192 x 80 |
|
Temperature
|
|
| Operating | -4Fº~140ºF (-20ºC~60ºC) |
|
Applications
|
|
| Surveying and Construction | yes |
| Mapping and GIS (geographic information systems) | yes |
| Utilities | yes |
| Environment Studies | yes |
| Geomarking | yes |
| Archaeology | yes |
| Accident Reconstruction | yes |
|
Measurement Range (under fair weather conditions)
|
|
| Single Prism | 4,000 m (13,123 ft) |
| No Prism | 350 m (1,148 ft) |
| Mini Prism | 500 m (1,640 ft) |
| Reflector Sheet | 500 m (1,640 ft) |
|
Functions
|
|
| Coordinate Measurement Point | yes |
| Angle and Distance Stake Out | yes |
| Stake Out Line | yes |
| Offsets | yes |
| Missing Line | yes |
| Remote Elevation | yes |
| Resection | yes |
| Area Calculation | yes |
|
Measurement Time
|
|
| Fine | 0.9-second |
| Rapid | 0.7-second |
| Tracking | 0.3-second |
|
Laser Pointer
|
|
| Class | Coaxial red laser using EDM beam |
|
Interface
|
|
| Pin Port | RS-232C |
Hubungi Tlp/WA : 081333102011
Toko Peralatan Survey
CV.BUANA SURVEY
081333102011 atau 021.7321129 ( Nurcahyo)
Menjual Alat Ukur / Alat Survey,Gps Garmin, Gps Trimble, Fluke, Kyoritsu, Hioki, Sanwa, Brunton, Suunto, Sincon, Nikon, Topcon, South, Motorola, Alinco, Icom, Kyoritsu Dan Fluke.Perusahaan Di Bawah Naungan Buana Survey Group,
Menjual,Service Kilibrasi, Alat-Alat Untuk Survey Pemetaan,Kontraktor,Telekomunikasi,Geologi, Exploration ,Kelautan, Militer,Migas, Meteorologi, Klimatologi, dan Geofisika, Laboratorium Industri Pembangunan Pembangunan, Pengelolahan Lahan Lahan Perhutanan Dan Perkebunan Kelapa Sawit. Diantara Alat-Alatnya Sebagai Berikut :
Total Station :
-Total Station Sokkia CX-101, CX-102, CX-103, CX-105, CX-105c
-Total Station Sokkia FX-101, FX-102, FX-103, FX-105
-Total Station Topcon GTS-102N, GTS-255N, GTS-250 Series
-Total Station Topcon ES-101, ES-102, ES-103, ES-105
-Total Station Topcon OS-101, OS-102, OS-103, OS-105
-Total Station Nikon DTM-322, NPL322
-Total Station Nikon Nivo 1M, 2M,3M, 5M
-Total Station Gowin TKS 202
-Total Station Cygnus KS-102
-Total Station South NTS-352L
-Total Station Hi-Target ZTS-320R
-Total Station Ruide RTS 822A, 822R
-Total Station GEO FENNEL FTS 102 , FTD 02
Digital Theodolite :
- Geo FENNEL FET 102KL
- Sokkia DT-540,DT-740
- Topcon DT-205,DT-205L,DT-209,DT-209L
- Nikon NE-100,NE-101,NE-102,NE-103
- South ET-02
- My Surv DT-202C
- GeoMAX ZIPP-02
- Ruide ET02
- Pentax ETH-502
Automatic Level :
- Sokkia B-20,B-30,B-40
- Topcon ATB-2,ATB-3,ATB-4
- Nikon AS-2C,AE-7,AP-8,AC-2S,AX-2S
- Digital Level Orion 2LS
- Digital Level GEOMAX ZDL700
- Digital Level PENTAX AP228
- Digital GEO FENNEL FAL 32
GPS Handheld:
– Garmin GPSMAP 62s
– Garmin GPSMAP 78s
– Garmin GPS Montana 650 kamera 5 MP
– Garmin GPS e-Trex 10,20,30
– Garmin GPS Rino 610– Garmin Nuvi 1350,Nuvi 50LM,
– Garmin GPS Aera 500,Aera 550
– Magellan Explorist 610
Gps Marine :
– Garmin GPSMAP 4012
– Garmin GPSMAP 2108
– Garmin GPSMAP 585
– Garmin GPS 128
– Garmin Radar GMR-18
– Garmin GSD 22
– Garmin Antena GA 30
– Garmin Kabel Transduser
– Garmin Fishfinder Echo 100,300c,500c
– FURUNO GP-32
– FURUNO FCV 620
– FURUNO FCV 627
– FURUNO 1835
– Gps Geodetik Trimble,Topcon,Sokkia,Javad
– Kompas Geologi,Kompas Survey
– Handy Talky
– Radio Rig
– Telepon Satelit
– Walkie Talkie Sepasang
– Teropong Binocular Nikon
– Teropong Binocular Bushnell
– Teropong Malam Night Vision
– Teropong Jarak Bushnell&Nikon;- Peralatan Geologi Explorasi Tambang
– Peralatan Meteorologi
– Peralatan Hidrografi Laut Dan Sungai
– Peralatan Survey Hutan Dll
Tersedia Jasa Service Kalibrasi
Diantaranya :
Total Station - Theodolite - Automatic Level / Waterpass dan Laser level dll
* GRATIS ONGKOS KIRIM !!!! WILAYAH DKI JAKARTA PEMBAYARAN COD DI TEMPAT *
081333102011 atau 021.7321129 ( Nurcahyo)
Menjual Alat Ukur / Alat Survey,Gps Garmin, Gps Trimble, Fluke, Kyoritsu, Hioki, Sanwa, Brunton, Suunto, Sincon, Nikon, Topcon, South, Motorola, Alinco, Icom, Kyoritsu Dan Fluke.Perusahaan Di Bawah Naungan Buana Survey Group,
Menjual,Service Kilibrasi, Alat-Alat Untuk Survey Pemetaan,Kontraktor,Telekomunikasi,Geologi, Exploration ,Kelautan, Militer,Migas, Meteorologi, Klimatologi, dan Geofisika, Laboratorium Industri Pembangunan Pembangunan, Pengelolahan Lahan Lahan Perhutanan Dan Perkebunan Kelapa Sawit. Diantara Alat-Alatnya Sebagai Berikut :
Total Station :
-Total Station Sokkia CX-101, CX-102, CX-103, CX-105, CX-105c
-Total Station Sokkia FX-101, FX-102, FX-103, FX-105
-Total Station Topcon GTS-102N, GTS-255N, GTS-250 Series
-Total Station Topcon ES-101, ES-102, ES-103, ES-105
-Total Station Topcon OS-101, OS-102, OS-103, OS-105
-Total Station Nikon DTM-322, NPL322
-Total Station Nikon Nivo 1M, 2M,3M, 5M
-Total Station Gowin TKS 202
-Total Station Cygnus KS-102
-Total Station South NTS-352L
-Total Station Hi-Target ZTS-320R
-Total Station Ruide RTS 822A, 822R
-Total Station GEO FENNEL FTS 102 , FTD 02
Digital Theodolite :
- Geo FENNEL FET 102KL
- Sokkia DT-540,DT-740
- Topcon DT-205,DT-205L,DT-209,DT-209L
- Nikon NE-100,NE-101,NE-102,NE-103
- South ET-02
- My Surv DT-202C
- GeoMAX ZIPP-02
- Ruide ET02
- Pentax ETH-502
Automatic Level :
- Sokkia B-20,B-30,B-40
- Topcon ATB-2,ATB-3,ATB-4
- Nikon AS-2C,AE-7,AP-8,AC-2S,AX-2S
- Digital Level Orion 2LS
- Digital Level GEOMAX ZDL700
- Digital Level PENTAX AP228
- Digital GEO FENNEL FAL 32
GPS Handheld:
– Garmin GPSMAP 62s
– Garmin GPSMAP 78s
– Garmin GPS Montana 650 kamera 5 MP
– Garmin GPS e-Trex 10,20,30
– Garmin GPS Rino 610– Garmin Nuvi 1350,Nuvi 50LM,
– Garmin GPS Aera 500,Aera 550
– Magellan Explorist 610
Gps Marine :
– Garmin GPSMAP 4012
– Garmin GPSMAP 2108
– Garmin GPSMAP 585
– Garmin GPS 128
– Garmin Radar GMR-18
– Garmin GSD 22
– Garmin Antena GA 30
– Garmin Kabel Transduser
– Garmin Fishfinder Echo 100,300c,500c
– FURUNO GP-32
– FURUNO FCV 620
– FURUNO FCV 627
– FURUNO 1835
– Gps Geodetik Trimble,Topcon,Sokkia,Javad
– Kompas Geologi,Kompas Survey
– Handy Talky
– Radio Rig
– Telepon Satelit
– Walkie Talkie Sepasang
– Teropong Binocular Nikon
– Teropong Binocular Bushnell
– Teropong Malam Night Vision
– Teropong Jarak Bushnell&Nikon;- Peralatan Geologi Explorasi Tambang
– Peralatan Meteorologi
– Peralatan Hidrografi Laut Dan Sungai
– Peralatan Survey Hutan Dll
Tersedia Jasa Service Kalibrasi
Diantaranya :
Total Station - Theodolite - Automatic Level / Waterpass dan Laser level dll
* GRATIS ONGKOS KIRIM !!!! WILAYAH DKI JAKARTA PEMBAYARAN COD DI TEMPAT *
