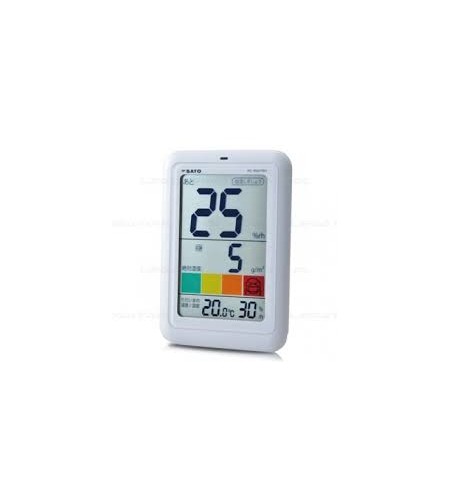

SK - SATO Digital Thermohygrometer PC-5500TRH

Update Terakhir
14-06-2016
Dilihat Sebanyak
51 kali
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi SK - SATO Digital Thermohygrometer PC-5500TRH

 FEATURES

* The estimated value for comfortable environment is displayed
* Absolute humidity that gives indication for the prevention of seasonal influenza is displayed
* The WBGT index that is useful to prevent heatstroke is also displayed
* Influenza mode and Heatstroke mode are selectable by the mode switch
* The LED light and the buzzer sound are used to alert the alarm status
* Two installation methods: The unit can be installed on a desk or wall

INFLUENZ A MODE

Influenza mode

* Displays the absolute humidity used as a guideline for preventing seasonal influenza
* Estimated value to achieve the target value for comfortable environment is displayed.
The unit displays how much the humidity (%rh) should be increased for comfortable environment
* Color icons show the warning levels depending on the absolute humidity
* The target value for a comfortable environment is set to 10g/m3, regardless of temperature.
The absolute humidity of 10g/m3 is in the "Caution" status for influenza.
The drawbacks of increasing the humidity include condensation or mold in a room.
Use the value as a guideline depending on your applications and surrounding.
* If absolute humidity is 10g/m3 or more, the estimated value for a comfortable environment is displayed as 0%rh



Heatstroke mode

* The unit displays by how much the temperature should be increased for preventing  heatstroke
* The estimated value to achieve the value for a comfortable environment is displayed depending on the WBGT index  The unit displayed by how much the temperature should be lowered for a comfortable environment.
* Color icons show the ambient status depending on the WBGT index.
* The target WBGT index for a comfortable environment is set to 27°C, regardless of humidity.
The WBGT index of 27°C is in the "Warning" status for heatstroke.
When doing vigorous exercise, there is still a risk of heatstroke even in a comfortable environment.
Use the value as a guideline depending on your application and surrounding.
* If the WBGT index is 27°C or less, the estimated value for a comfortable environment is displayed as 0°C

Specifications

Product Digital Thermohygrometer (guide for a comfortable environment)
Catalog No. 1051-00
Model PC-5500TRH
Measuring range Temperature 0.0 to 50.0°C
R. Humidity 20 to 95%rh
Absolute humidity 1 to 65g/m³ (calculated)
WBGT index 0 to 50°C (calculated)
Measuring accuracy Temperature ±1.0°C ( at 10 to 40°C)
±1.5°C (at other range)
R. Humidity ±5%rh (at 20 to 30°C/40 to 70%rh)
±8%rh  (at other range)
Resolution Temperature 0.1°C
R. humidity 1%rh
Absolute humidity 1g/m³
WBGT index 1°C
Sampling (Display update) about 30 sec.
Sensing element Temperature thermistor
Humidity Electric resistance change type humidity sensor
Operation ambient 0 to 50°C (lower than 95%rh (no freeze or condensing)
Storage ambient -10 to 50°C (no freeze or condensation)
Power requirement 3 AAA size batteries
Battery life approx. one year (in use of alkaline battery,  one alarm operation per day)
Materials ABS resin, acrylic resin
Dimensions approx. (W)120 x (H)170 x (D)25mm
Weight 280g (includes battery)
Accessories 3 AAA batteries (*one is set in a unit at our factory)
English manual
