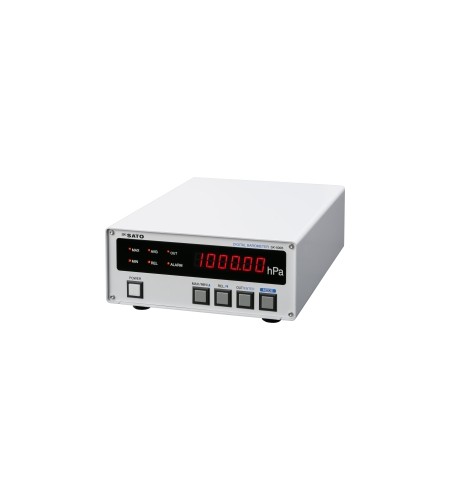

SK - SATO Digital Barometer SK-500B

Update Terakhir
14-06-2016
Dilihat Sebanyak
63 kali
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi SK - SATO Digital Barometer SK-500B


Features

Wide measuring range of 600 to 1100hPa
High resolusion of 0.01hPa
Red LED for easy visibility
Various arithmetic results: calculates and displays the values of MAX, MIN, AVG and REL
RS-232C/Printer output
Equipped with an RS-232C output. Measured values can be displayed on a computer in real time.  The data also can be printed out in real time with the optional printer
Upper and lower limit alarms
Equipped with a contact output that can be connected to an external alarm device  such as a buzzer and revolving light.
Upper and lower limit alarm values can be separately set
Pressure port that is the inlet for the atmospheric pressure is equipped


Specifications

Measuring range 600.00 to 1100.00hPa
Resolution 0.01hPa
Accuracy
(at 10 to 40C)
±0.50hpa (700.00 to 1100.00hPa)
±1.00hpa (other than above)
Sampling time approx. 1 sec.
Sensing element Piezoresistance pressure sensor
Display 7 segment red LED (6 digits)  Status indication: red LED
Operation ambient -10°C to 50°C, less than 85 %rh (no condensing)
Power requirement 9VDC (exclusive AC adapter in 100 to 240VAC use) 660mA 50/60Hz
Materials Main Body: SPCC
Display: acryl resin
Pressure port: SUS304
Dimensions (W)200×(H)90×(D)280 mm
Weight appricx. 3.0 kg
Accessories Instruction manual, exclusive AC adapter x 1
RS-232C cable x 1
USB serial cable (with CD-ROM for USB driver) x 1



Instalation

The SK-500B is an indoor use desk-top type digital barometer.
Install the unit vertically avoiding the places as below.

▪In flammable gases, corrosive gases and explasive gases
▪In a place subject to direct sunshine and near the thermal appliance
▪Near the exhaust port of airconditioner
▪In a plece subject to vibration
▪Beyond the operation ambient (-10 to 50°C,less than 85%rh, no condensing)
▪In an environment where electrical noise is generated
▪In a place subject to rain and splash water
