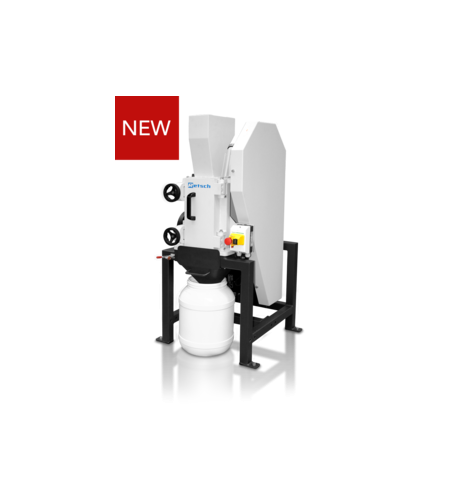

Jaw Crusher BB 250 XL
Perhatian!
Spesifikasi Jaw Crusher BB 250 XL
Product Advantages
- high crushing ratio
- front door facilitates cleaning
- infinite/continuous gap width setting
- overload protection
- wide range of materials for contamination free grinding
- no-rebound feed hopper, removable
- sample collector with safety switch
- collecting receptacle with outlet for continuous operation
- connector for dust extraction
- special version with automated sorting of undersize (3 fractions) and oversize (1 fraction)
Features
| Applications | coarse and pre-crushing |
| Field of application | chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material | medium-hard, hard, brittle, tough |
| Size reduction principle | pressure |
| Material feed size* | < 120 x 90 mm |
| Final fineness* | < 2 mm |
| Material of grinding tools | manganese steel, stainless steel, tungsten carbide, Stahl für schwermetallfreie Zerkleinerung |
| Jaw width | 120 x 90 mm |
| Gap width setting | 0 - 30 mm |
| Gap width display | scale |
| Zero point adjustment | yes |
| Wearing rate display | yes, up to minus 10 mm |
| Removable hopper | yes |
| Dust extraction unit | yes |
| Central lubrication | optional |
| Process line version | optional |
| Collector capacity | 10 l |
| Base frame | vario frame (adjustable for continous crushing) |
| Drive | 3-phase motor |
| Drive power | 3.0 kW |
| Electrical supply data | different voltages |
| Power connection | 3-phase |
| Protection code | IP 55 |
| W x H x D closed | 695 x 1399 x 719 mm |
| Net weight | ~ 350 kg |
| Standards | CE |
