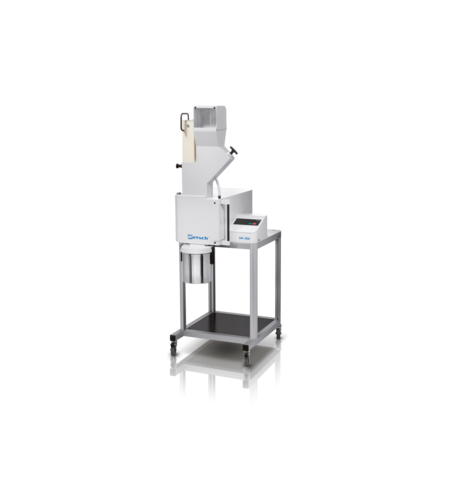

RETSCH Cutting Mill SM 200
Perhatian!
Spesifikasi RETSCH Cutting Mill SM 200
Product Advantages
- powerful size reduction with 2.2 kW drive
- optimum cutting effects thanks to double acting cutting bars
- quick and easy cleaning due to fold-back hopper, smooth surfaces and push-fit rotor
- defined final fineness due to bottom sieves with aperture sizes from 0.25 - 20 mm
- wide range of accessories including various hoppers, collection systems, rotors and sieves
- highest safety standards due to engine brake, central locking device, electronic safety check and safety base frame
- 18 cutting events per rotation with parallel section rotor
Features
| Applications | size reduction by cutting |
| Field of application | agriculture, biology, chemistry / plastics, engineering / electronics, environment / recycling, food, medicine / pharmaceuticals |
| Feed material | soft, medium-hard, tough, elastic, fibrous |
| Size reduction principle | shearing, cutting |
| Material feed size* | < 60 x 80 mm |
| Final fineness* | 0.25 - 20 mm |
| Speed at 50 Hz (60 Hz) | 1,500 min-1 |
| Rotor peripheral speed | 9.4 - 11.4 m/s |
| Rotor diameter | 129.5 mm |
| Types of rotors | parallel section rotor / 6-disc rotor |
| Types of hoppers | standard, long stock |
| Material of grinding tools | stainless steel, steel for heavy-metal free grinding, tungsten carbide |
| Sieve sizes | trapezoid holes 0.25 / 0.50 / 0.75 / 1.00 / 1.50 mm square holes 2.00 / 4.00 / 6.00 / 8.00 / 10.00 / 20.00 mm |
| Collector systems / capacities | collecting receptacle 5 l / optional: 30 l collecting unit 0.25 / 0.5 l cyclone-suction combination (0.25 l - 5 l) |
| Drive | 3-phase motor |
| Drive power | 2.2 kW |
| Electrical supply data | different voltages |
| Power connection | 3-phase |
| Engine brake | yes |
| Protection code | IP54 |
| W x H x D closed | 576 (1090 opened) x 1675 x 760 mm (with base frame and standard hopper) |
| Net weight | ~ 90 kg without hopper |
| Standards | CE |
