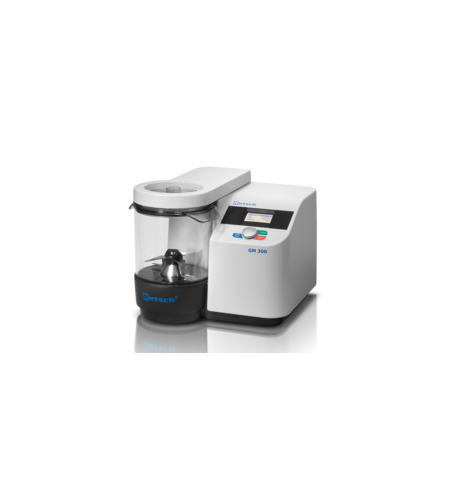

RETSCH Knife Mill GRINDOMIX GM 300
Perhatian!
Spesifikasi RETSCH Knife Mill GRINDOMIX GM 300
Product Advantages
- efficient size reduction of up to 4,500 ml feed quantity due to a powerful 1.1 kW motor (peak power input >3 kW)
- pre- and fine-grinding in one mill: cutting action in regular mode, grinding by impact in reverse mode, pre-grinding in interval mode
- all parts which come into contact with the sample material are autoclavable
- perfect adaptation to application requirements by variable speed from 500 to 4000 min-1 with an increment of 100 min-1
- optional gravitation lid for automatic reduction of the grinding chamber volume
- 10 SOPs can be stored
- grinding jar in plastic and stainless steel available
Features
| Applications | size reduction, homogenization and mixing |
| Field of application | agriculture, biology, food, medicine / pharmaceuticals |
| Feed material | soft, medium-hard, elastic, containing water / fat / oil, dry, fibrous |
| Size reduction principle | cutting |
| Material feed size* | ~ 130 mm |
| Final fineness* | < 300 µm |
| Batch size / feed quantity* | with standard lid 4500 ml with gravity lid 4000 ml |
| Grinding chamber volume | 5000 ml, reduction with gravity lid |
| Speed setting | digital, 500 - 4000 min-1 |
| Dry grinding | yes |
| Wet grinding | yes |
| Material of grinding tools | grinding container: autoclavable plastic PC, stainless steel 1.4435 blade: stainless steel 1.4034 holder for blade: PVDF sealings: EPDM, FKM |
| Setting of grinding time | digital, 5 s - 3 min |
| Interval operation | yes |
| Interval time | adjustable |
| Storable SOPs | 10 |
| Drive | 3-phase asynchronous motor with frequency converter |
| Drive power | continuously 1.1 kW, short term 3 kW |
| Electrical supply data | different voltages |
| Power connection | 1-phase |
| Protection code | IP 20 |
| W x H x D closed | 440 mm x 340 mm x 440 mm |
| Net weight | ~ 30 kg |
| Standards | CE |
