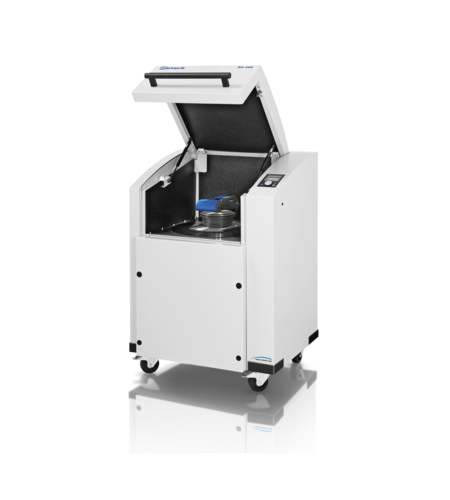

RETSCH Vibratory Disc Mill RS 200
Perhatian!
Spesifikasi RETSCH Vibratory Disc Mill RS 200
Product Advantages
- reproducible results due to "Stabilized-Plane-Drive" (avoids tumbling of the grinding set)
- variable speed 700 - 1,500 min-1
- extremely short grinding time
- agate and tungsten carbide recognition for automatic speed reduction
- 10 SOPs can be stored
- no sample loss thanks to optimum o-ring seal
- wide range of materials for contamination free grinding
- noise-insulated grinding chamber
- new quick-action grinding set clamping device for convenient and safe tightening
- safety interlock
- easy 1-button operation with colored graphics display
- new carry handle
- new ergonomic design, heavy grinding sets can be inserted closer to the user´s body and slided into the machine, leading to less strenuous laboratory work especially for high throughput users
Features
| Applications | size reduction, mixing, triturating |
| Field of application | construction materials, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material | medium-hard, hard, brittle, fibrous |
| Size reduction principle | pressure, friction |
| Material feed size* | < 15 mm |
| Final fineness* | < 20 µm |
| Batch size / feed quantity* | 15- 250 ml depending on size of grinding set |
| Speed at 50 Hz (60 Hz) | 700 - 1,500 min-1, continuously adjustable |
| Material of grinding tools | hardened steel, tungsten carbide, agate, zirconium oxide, steel 1.1740 (for heavy-metal free grinding) |
| Grinding jar sizes | 50 ml / 100 ml / 250 ml |
| Setting of grinding time | digital, 00:01 to 99:59 |
| Storable SOPs | 10 |
| Drive | 3-phase asynchronous motor with frequency converter |
| Drive power | 1.5 kW |
| Electrical supply data | different voltages |
| Power connection | 1-phase |
| Protection code | IP 40 |
| W x H x D closed | 836 x 1220 x 780 mm |
| Net weight | ~ 210 kg (without grinding set) |
| Standards | CE |
