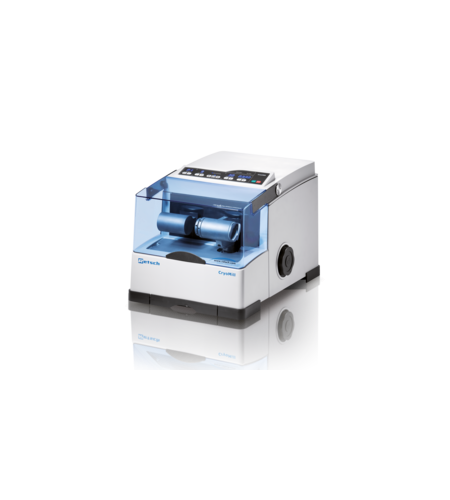

RETSCH CryoMill
Perhatian!
Spesifikasi RETSCH CryoMill
Product Advantages
- powerful cryogenic grinding by impact and friction, up to 30 Hz
- 3 different grinding modes (cryogenic, dry or wet at ambient temperature)
- closed LN2-system (autofill) for enhanced safety, avoids any contact of the user with LN2
- screw-top grinding jars for convenient, leak-proof operation
- wide range of accessories including various LN2 feeding systems, jar and ball sizes, adapter racks, materials
- low LN2-consumption
- clearly structured user interface, memory for 9 SOPs
- programmable cooling and grinding cycles (10 s to 99 min)
- ceramic jar available
Features
| Applications | size reduction, mixing, homogenization, cell disruption |
| Field of application | agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals |
| Feed material | hard, medium-hard, soft, brittle, elastic, fibrous |
| Size reduction principle | impact, friction |
| Material feed size* | ≤ 8 mm |
| Final fineness* | ~ 5 µm |
| Batch size / feed quantity* | max. 20 ml |
| No. of grinding stations | 1 |
| Setting of vibrational frequency | digital, 5 - 30 Hz (300 - 1800 min-1) |
| Typical mean grinding time | 10 min / 4 min (cooling / grinding) |
| Dry grinding | yes |
| Wet grinding | yes |
| Cryogenic grinding | yes |
| Cell disruption with reaction vials | yes |
| Self-centering clamping device | yes |
| Type of grinding jars | screw top design |
| Material of grinding tools | hardened steel, stainless steel, zirconium oxide, PTFE |
| Grinding jar sizes | 5 ml / 10ml / 25 ml / 35 ml / 50 ml |
| Autofill | 50 l |
| Setting of grinding time | digital, 30 s - 99 min |
| Storable SOPs | 9 |
| Electrical supply data | 100-240 V, 50/60 Hz |
| Power connection | 1-phase |
| Protection code | IP 30 |
| Power consumption | 260 W |
| W x H x D closed | 395 x 373 x 577 mm (D: 710 mm with exhaust tube) |
| Net weight | ~ 45 kg |
| Documentation | Operation & Application Video |
| Standards | CE |
