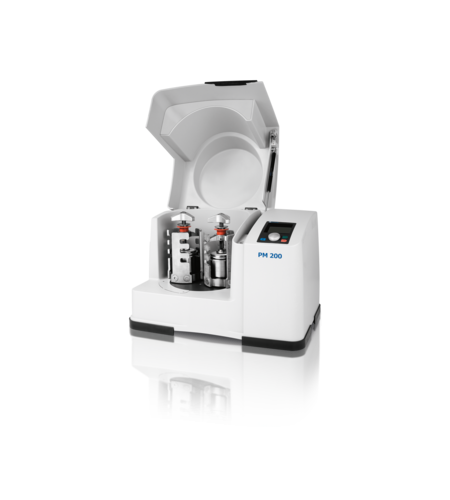

RETSCH Planetary Ball Mill PM 200
Perhatian!
Spesifikasi RETSCH Planetary Ball Mill PM 200
Product Advantages
- powerful and quick grinding down to nano range
- reproducible results due to energy and speed control
- suitable for long-term trials
- 2 different grinding modes (dry and wet)
- measurement of energy input
- wide range of materials for contamination free grinding
- Safety Slider for safe operation
- comfortable parameter setting via display and ergonomic 1-button operation
- automatic grinding chamber ventilation
- 10 SOPs can be stored
- programmable starting time
- power failure backup ensures storage of remaining grinding time
- jars with O-type sealing for safe operation, pressure tight
Features
| Applications | pulverizing, mixing, homogenizing, colloidal milling, mechanical alloying |
| Field of application | agriculture, biology, Chemistry, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals |
| Feed material | soft, hard, brittle, fibrous - dry or wet |
| Size reduction principle | impact, friction |
| Material feed size* | < 4 mm |
| Final fineness* | < 1 µm, for colloidal grinding < 0.1 µm |
| Batch size / feed quantity* | max. 2 x 50 ml |
| No. of grinding stations | 2 |
| Speed ratio | 1 : -2 |
| Sun wheel speed | 100 - 650 min-1 |
| Effective sun wheel diameter | 157 mm |
| G-force | 37.1 g |
| Type of grinding jars | "comfort", optional areation covers, safety closure devices |
| Material of grinding tools | hardened steel, stainless steel, tungsten carbide, agate, sintered aluminium oxide, silicon nitride, zirconium oxide |
| Grinding jar sizes | 12 ml / 25 ml / 50 ml / 80 ml / 125 ml |
| Setting of grinding time | digital, 00:00:01 to 99:59:59 |
| Interval operation | yes, with direction reversal |
| Interval time | 00:00:01 to 99:59:59 |
| Pause time | 00:00:01 to 99:59:59 |
| Storable SOPs | 10 |
| Measurement of input energy possible | yes |
| Interface | RS 232 / RS 485 |
| Drive | 3-phase asynchronous motor with frequency converter |
| Drive power | 750 W |
| Electrical supply data | different voltages |
| Power connection | 1-phase |
| Protection code | IP 30 |
| Power consumption | ~ 1250 W (VA) |
| W x H x D closed | 630 x 468 x 415 mm |
| Net weight | ~ 72 kg |
| Standards | CE |
| Patent / Utility patent | SafetySlider (DE 202008008473) |
