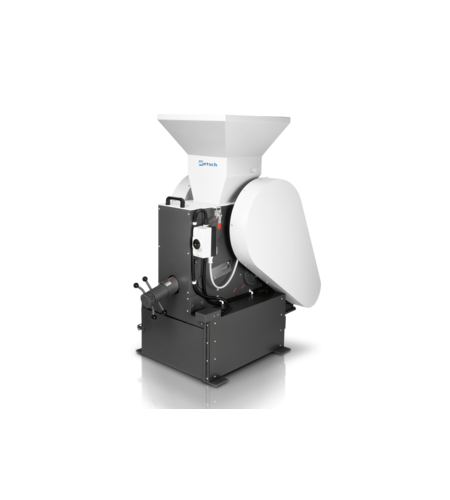

RETSCH Jaw Crusher BB 300
Perhatian!
Spesifikasi RETSCH Jaw Crusher BB 300
Product Advantages
- excellent crushing performance
- wear compensation with zero-point adjustment
- infinitely gap width setting
- overload protection
- wide range of materials for contamination free grinding
- no-rebound feed hopper with quick-release clamp
- brake motor with safety switch
- easy-to-clean crushing chamber
- connector for dust extraction
- central lubrication
- suitable for integration in automatic installations
- special version for grinding semi-conductor materials
Features
| Applications | coarse and pre-crushing |
| Field of application | chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material | medium-hard, hard, brittle, tough |
| Size reduction principle | pressure |
| Material feed size* | < 130 mm |
| Final fineness* | < 5 mm |
| Material of grinding tools | manganese steel, stainless steel, tungsten carbide, steel 1.1750 (for heavy-metal free grinding) |
| Jaw width | 138 x 198 mm |
| Gap width setting | 1 - 40 mm |
| Gap width display | scale |
| Zero point adjustment | yes |
| Hinged hopper | yes |
| Dust extraction unit | yes |
| Central lubrication | yes |
| Process line version | optional |
| Collector capacity | 27.5 l / 35.4 l |
| Drive | 3-phase motor |
| Drive power | 3.0 kW |
| Electrical supply data | different voltages |
| Power connection | 3-phase |
| Protection code | IP 54 |
| W x H x D closed | 670 x 1450 x 1600 mm |
| Net weight | ~ 700 kg |
| Standards | CE |
