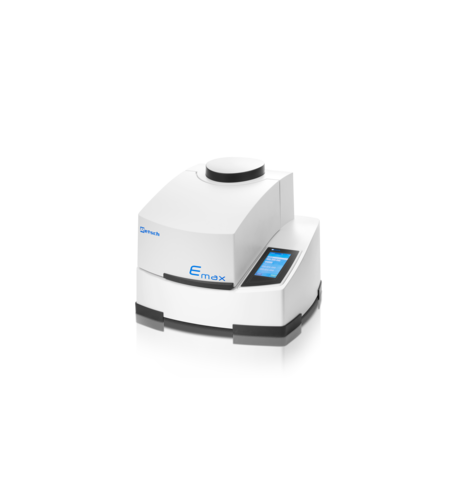

RETSCH High Energy Ball Mill Emax
Perhatian!
Spesifikasi RETSCH High Energy Ball Mill Emax
Product Advantages
- faster and finer grinding than any other ball mills
- speed of 2000 min-1 allow for ultra-fast pulverization of the sample
- water cooling permits continuous operation without cool down breaks
- temperature-controlled grinding
- narrow particle size distribution thanks to special jar design which improves mixing of the sample
- patented drive concept
- easy operation via touch screen, 10 SOPs storable
- operation with 2 grinding jars
- easy installation of grinding jars
- jars with integrated safety closure
- range of jar materials allow for contamination free grinding
Features
| Applications | nano grinding, size reduction, homogenizing, mechanical alloying, colloidal milling, high energy comminution |
| Field of application | agriculture, biology, Chemistry, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals |
| Feed material | medium-hard, hard, brittle, fibrous - dry or wet |
| Size reduction principle | impact, friction |
| Material feed size* | < 5 mm |
| Final fineness* | < 80 nm |
| Batch size / feed quantity* | max. 2 x 45 ml |
| Speed at 50 Hz (60 Hz) | 300 - 2000 min-1 |
| Cooling | controlled integrated water cooling / option: external chiller |
| Temperature control | yes (min and max temperature may be defined) |
| No. of grinding stations | 2 |
| Type of grinding jars | with integrated safety closure devices |
| Material of grinding tools | stainless steel, tungsten carbide, zirconium oxide |
| Grinding jar sizes | 50 ml / 125 ml |
| Setting of grinding time | 00:01:00 to 99:59:59 |
| Interval operation | yes, with optional direction reversal |
| Interval time | 00:01:00 to 99:59:59 |
| Pause time | 00:01:00 to 99:59:59 |
| Storable SOPs | 10 |
| Interface | USB / LAN ( RJ45) |
| Drive | 3-phase asynchronous motor with frequency converter |
| Drive power | 2600 W |
| Electrical supply data | different voltages |
| Power connection | 1-phase |
| Protection code | IP 30 |
| Power consumption | ~ 3100W (VA) |
| W x H x D closed | 625 x 525 x 645 mm |
| Net weight | ~ 120 kg |
| Standards | CE |
| Patent / Utility patent | Inclined Grinding bowls (US 8,042,754 B2) |
