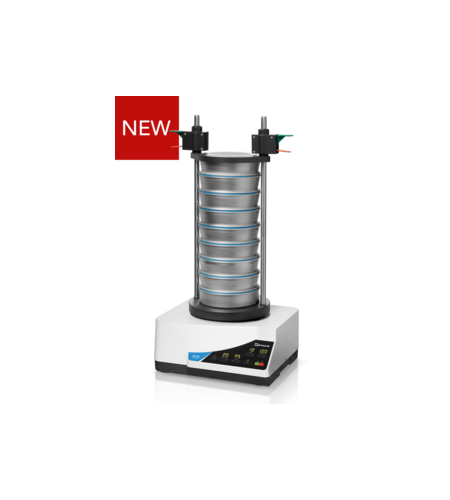

RETSCH Vibratory Sieve Shaker AS 200 control
Perhatian!
Spesifikasi RETSCH Vibratory Sieve Shaker AS 200 control
Product Advantages
- NEW: up to 99 sieving programs
- NEW: low noise operation thanks to optimized control
- NEW: USB connection for use of EasySieve software
- suitable for dry and wet sieving
- excellent separation efficiency even with short sieving times
- efficient electromagnetic drive
- 3-D throwing motion which ensures optimum use of the open sieve area and lets the sample move equally over the whole sieving surface
- setting of sieve acceleration "g" for comparable and reproducible sieving results worldwide
- sieve stack up to 550 mm height
- free digital adjustment of all process parameters (time, amplitude or sieve acceleration, interval)
- interval operation
- optional sieve software EasySieve for control of the shaker, easy evaluation and documentation of results
- fulfils all criteria for measuring equipment related to ISO 9001
- calibration certificate
- easy operation, ergonomic design
- maintenance-free
Features
| Applications | separation, fractioning, particle size determination |
| Field of application | agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals |
| Feed material | powders, bulk materials, suspensions |
| Measuring range* | 20 µm - 25 mm |
| Sieving motion | throwing motion with angular momentum |
| Max. batch / feed capacity | 3 kg |
| Max. number of fractions | 11 / 23 |
| Max. mass of sieve stack | 6 kg |
| Amplitude | digital, 0.2 - 3 mm |
| Controlled amplitude | yes |
| Sieve acceleration | 1.0 - 15.1 g |
| Time display | digital, 1 - 99 min |
| Interval operation | 1 - 99 s |
| Storable SOPs | 99 |
| Suitable for dry sieving | yes |
| Suitable for wet sieving | yes |
| USB interface | yes |
| Including test certificate / can be calibrated | yes |
| Suitable sieve diameters | 100 mm / 150 mm / 200 mm / 203 mm (8") |
| Max. height of sieve stack | 550 mm |
| Clamping devices | "standard", "comfort", each for wet and dry sieving |
| Protection code | IP 54 / IP 20 |
| Electrical supply data | 100-240 V, 50/60 Hz |
| Power connection | 1-phase |
| W x H x D | 417 x 212 x 384 mm |
| Net weight | ~ 35 kg |
| Standards | CE |
