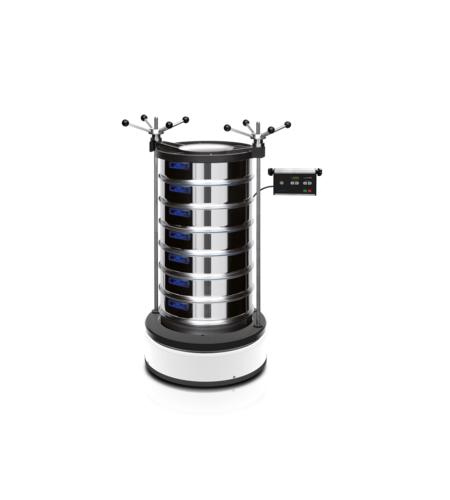

RETSCH Vibratory Sieve Shaker AS 450 basic
Perhatian!
Spesifikasi RETSCH Vibratory Sieve Shaker AS 450 basic
Product Advantages
- suitable for dry and wet sieving
- excellent separation efficiency even with short sieving times
- efficient electromagnetic drive
- 3-D throwing motion which ensures optimum use of the open sieve area and lets the sample move equally over the whole sieving surface
- up to 11 fractions in one sieving operation
- free digital adjustment of all process parameters (time, amplitude, interval)
- mobile operation panel for comfortable, intuitive handling
- maintenance-free
- easy operation, ergonomic design
- robust steel housing
Features
| Applications | separation, fractioning, particle size determination |
| Field of application | chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material | powders, bulk materials |
| Measuring range* | 25 µm - 125 mm |
| Sieving motion | throwing motion with angular momentum - 3D movement |
| Max. batch / feed capacity | 15 kg |
| Max. number of fractions | 11 / 8 |
| Max. mass of sieve stack | 50 kg |
| Amplitude | digital, 0 - > 2 mm |
| Time display | digital, 0 - 99 min |
| Interval operation | yes |
| Storable SOPs | 1 |
| Suitable for dry sieving | yes |
| Suitable for wet sieving | yes |
| Serial interface | - |
| Suitable sieve diameters | 400 mm / 450 mm |
| Max. height of sieve stack | 830 mm |
| Clamping devices | "standard" (two models, one for dry, one for wet sieving) |
| Electrical supply data | different voltages |
| Power connection | 1-phase |
| W x H x D | 680 x 280 x 680 mm |
| Net weight | ~ 140 kg |
| Standards | CE |
