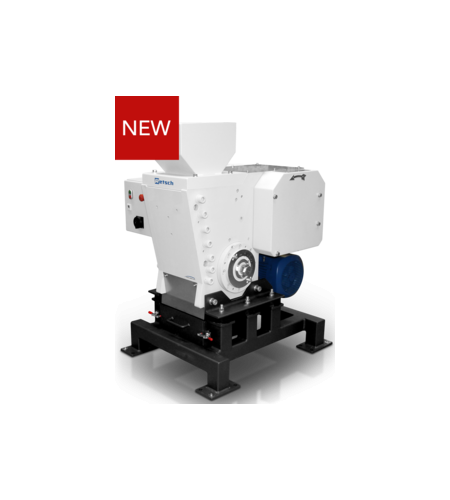

RETSCH Jaw Crusher BB 500 XL
Perhatian!
Spesifikasi RETSCH Jaw Crusher BB 500 XL
Product Advantages
- high crushing ratio 50:1
- continuous gap width setting
- overload protection
- wide range of materials for contamination free grinding
- removable no-rebound feed hopper
- easy-to-clean crushing chamber
- continuous and batch-wise crushing
- connector for dust extraction
- central lubrication (optional)
- suitable for integration in automatic installations
- special version for grinding semi-conductor materials
Features
| Applications | coarse and pre-crushing |
| Field of application | chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material | medium-hard, hard, brittle, tough |
| Size reduction principle | pressure |
| Material feed size* | < 110 mm |
| Final fineness* | 90% < 0.5 mm |
| Material of grinding tools | manganese steel |
| Jaw width | 250 x 130 mm |
| Gap width setting | 0 - 11 mm |
| Gap width display | scale |
| Hinged hopper | yes |
| Dust extraction unit | yes |
| Central lubrication | optional |
| Process line version | optional |
| Collector capacity | 9.5 l |
| Drive | 3-phase motor |
| Drive power | 7.5 kW |
| Electrical supply data | different voltages |
| Power connection | 3-phase |
| Protection code | IP 55 |
| W x H x D closed | 930 x 1400 x 1080 mm |
| Net weight | ~ 1000 kg |
| Standards | CE |
Please note:
*depending on feed material and instrument configuration/settings
Function Principle
