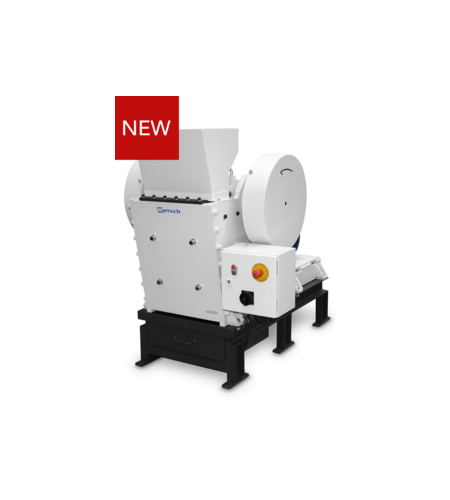

RETSCH Jaw Crusher BB 600 XL
Perhatian!
Spesifikasi RETSCH Jaw Crusher BB 600 XL
Product Advantages
- high crushing ratio
- high throughput up to 3,500 kg/h
- adjustable gap width setting
- overload protection
- size of breaking jaws 600 mm high / 400 mm wide
- no-rebound feed hopper
- easy-to-clean crushing chamber
- continuous and batch-wise crushing
- connector for dust extraction
- central lubrication (optional)
- suitable for integration in automatic installations
Features
| Applications | coarse and pre-crushing |
| Field of application | chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material | medium-hard, hard, brittle, tough |
| Size reduction principle | pressure |
| Material feed size* | < 350 x 170 mm |
| Final fineness* | < 6 mm |
| Material of grinding tools | manganese steel |
| Jaw width | 400 x 240 mm |
| Gap width setting | 6 - 60 mm with spacer plates |
| Dust extraction unit | yes |
| Central lubrication | optional |
| Process line version | optional |
| Collector capacity | 30 l |
| Drive | 3-phase motor |
| Drive power | 15 kW |
| Electrical supply data | different voltages |
| Power connection | 3-phase |
| Protection code | IP 55 |
| W x H x D closed | 925 x 1600 x 1370 mm |
| Net weight | ~ 1350 kg |
| Standards | CE |
