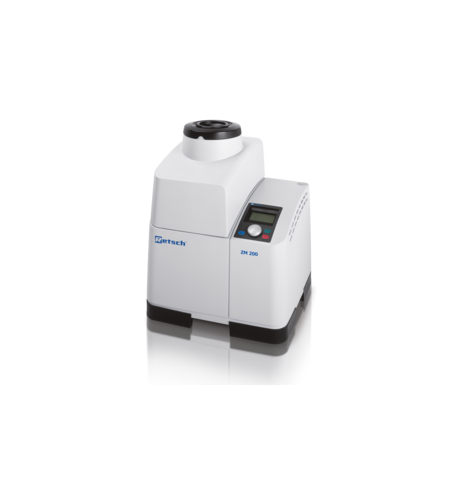

RETSCH Ultra Centrifugal Mill ZM 200
Perhatian!
Spesifikasi RETSCH Ultra Centrifugal Mill ZM 200
Product Advantages
- Powerdrive with optimally matched frequency converter and 3-phase motor
- gentle and very rapid size reduction by pre- and fine grinding in one run
- wide speed range
- patented cassette system for maximum sample recovery and easy cleaning
- easily exchangeable grinding and sieve inserts
- defined final fineness due to ring sieves with aperture sizes from 0.08 - 10 mm
- comfortable safety housing with automatic cover closure
- motor compartment and electronics protected against dust and material penetration
- comfortable parameter setting via display and ergonomic 1-button operation
- wide range of accessories including various collection and feeding systems, rotors and sieves
Features
| Applications | fine grinding |
| Field of application | agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, medicine / pharmaceuticals |
| Feed material | soft, medium-hard, brittle, fibrous |
| Size reduction principle | impact, shearing |
| Material feed size* | < 10 mm |
| Final fineness* | < 40 µm |
| Batch size / feed quantity* | 300 ml with standard cassette 20 ml with mini-cassette 1000 ml with paper filter bag 4500 ml / 2500 ml / 450 ml / 230 ml with cyclone |
| Speed at 50 Hz (60 Hz) | 6,000 - 18,000 min-1, free selectable |
| Rotor peripheral speed | 31 - 93 m/s |
| Rotor diameter | 99 mm |
| Types of rotors | 6-tooth rotor / 12-tooth rotor / 24-tooth rotor / 8-tooth mini-rotor |
| Material of grinding tools | stainless steel, titanium, steel 1.4404, stainless steel with wear-resistant coating |
| Sieve sizes | trapezoid holes 0.08 / 0.12 / 0.20 / 0.25 / 0.50 / 0.75 / 1.00 / 1.50 / 2.00 mm round holes 3.00 / 4.00 / 5.00 / 6.00 / 10.00 mm |
| Setting of grinding time | - |
| Collector capacity | 900 ml with standard cassette 50 ml with mini-cassette 3000 ml with paper filter bag 5000 ml / 3000 ml / 500 ml / 250 ml with cyclone |
| Drive | 3-phase asynchronous motor with frequency converter |
| Electrical supply data | different voltages |
| Power connection | 1-phase |
| Protection code | IP 20 |
| Power consumption | 1300 W |
| W x H x D closed | 410 x 515 x 365 mm |
| Net weight | ~ 38 kg |
| Standards | CE |
