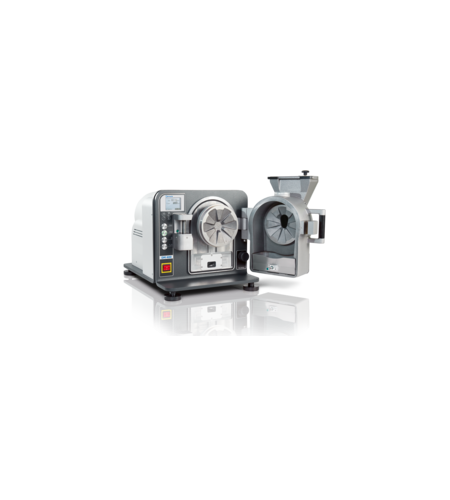

RETSCH Disc Mill DM 400
Perhatian!
Spesifikasi RETSCH Disc Mill DM 400
Product Advantages
- excellent crushing performance
- convenient grinding gap adjustment in 0.05 mm steps - with digital gap display
- TFT display with robust membrane keyboard
- large, removable plastic funnel with smooth inner surfaces for easy cleaning and optimum material feeding
- wear compensation of grinding disc thanks to zero point adjustment
- Smooth inner surfaces of grinding chamber allow for easy and residue-free cleaning
- additional labyrinth sealing seals the grinding chamber
- easy change of grinding discs
- optional version with polymer interior coating
Features
| Applications | preliminary and fine grinding |
| Field of application | chemistry / plastics, construction materials, engineering / electronics, geology / metallurgy, glass / ceramics |
| Feed material | medium-hard, hard, brittle |
| Size reduction principle | pressure, friction |
| Material feed size* | < 20 mm |
| Final fineness* | < 50 µm |
| Speed at 50 Hz (60 Hz) | 440 min-1 (528 min-1) |
| Material of grinding tools | zirconium oxide, hardened steel, tungsten carbide, manganese steel |
| Gap width setting | 0.05 - 12 mm |
| Collector capacity | 2.5 l |
| Drive | 3-phase geared motor |
| Drive power | 1.8 kW |
| Electrical supply data | different voltages |
| Power connection | 3-phase |
| Protection code | IP 55 |
| W x H x D closed | 520 x 630 x 1050 mm |
| Net weight | ~ 240 kg |
| Standards | CE |
