Test Pump Meter gerand

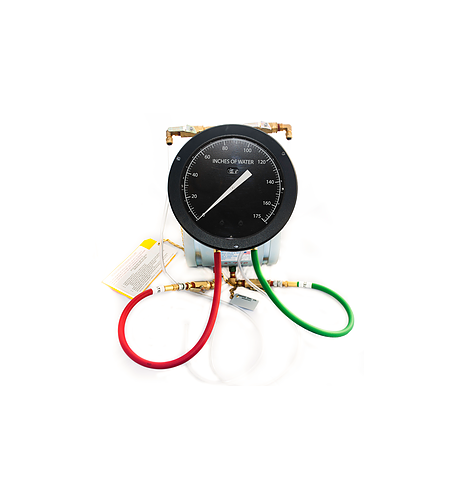

Gambar Produk
Test Pump Meter gerand
Update Terakhir
24-10-2017
Minimum Pembelian
1 unit
Dilihat Sebanyak
134 kali
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Test Pump Meter gerand
SPECIAL OPTIONS
– Dual GPM/LPM Scale
– Standard: GPM Scale
– Nitronic Meter
– Standard: Aluminum Meter
– Stainless Steel, Epoxy or Monel Venturi
– Standard: Carbon Steel Venturi
– Hose Lengths for Remote Mounting
– Standard: 21″ Hose Assembly
Attached to the meter with a brass chain is an oblong metal tag with the suggested piping diagram of the
system on one side, and the following operating instructions on the reverse side:
1. Close system OSY valve “A”
2. Open by-pass valve and “B” butterfly throttle valve
3. Purge meter, located on venturi, as follows:
a) Open station shut-off valves on venturi, and vent valves attached to meter.
When a steady stream of water without air bubbles passes through the clear plastic hoses,the meter is purged of air.
b) Close the vent valves after purging.
4. Start the fire pump, and read meter in GPM.
5. Refer to pump GPM requirement and adjust throttle valve to meet the requirement.
6.After the test, open valve “A” and close the by-pass and “B” valves.
– PIPES : ASTM A53B ERW – ANSI B36.10
2-1/2” – 10” SCH 40
12” & ABOVE STD
– COUPLINGS: 12L14 STEEL ASTM 108
– SPINNINGS: HOT ROLLED A621 or COLD ROLLED A620 STEEL
– ZING PLATING: .005 THICK ASTM B633-TYPE III
SERVICE SG3-VENTURIS STEEL ” -30”
– FLANGES: ASTM A105 2-1/2” -10” SCH 40 BORE
12” & ABOVE STD. BORE
– VENTURI & INDICATORS : CA36 ASTM B16 BRASS
– IW-GO’S: /25 CARBON STEEL PLATE ASTM A36
– TAG CHAIN/GROMMET: BRASS
– TAG: ALUMINUM- 3.21” THICK #200 MILL
– TAG SET SCREW: STEEL ZINC PLATED
– METER FITTING & DISCONNECTS: PIPE NIPPLE – B16 / 1/8” NEEDLE VALVE-B16
DISCONNECTS-B16
Flow Meter Wiratama
Flow Meter wiratama menyediakan alat untuk mengukur debit dan laju aliran suatu fluida baik untuk aliran liquid, aliran gas dan powder. Flow meter memiliki banyak bentuk dan model sesuai dengan kegunaan dan fungsi flow meter yang dibutuhkan.
Berdasarkan Jenis Fluida Flow meter dibagi dalam beberapa item yaitu flow meter air, flow meter oli, flow meter solar, flow meter cpo, flow meter limbah, flow meter air laut, flow meter udara, flow meter gas, flow meter steam, flow meter chemical, flow meter pasta, flow meter oksigen dan lainnya.
Sedangkan dari segi type flow meter serta cara kerja flow meter ada beberapa type yang beredar yaitu electromagnetic flow meter atau mag meter, vortex flow meter, ultrasonic flow meter, orifice flow meter, oval gear flow meter, roots flow meter, rota meter, PD flow Meter, DP Flow Meter, variable area flow meter, tube flow meter, Coriolis flow meters, Transit time method flow meter, doppler flow meter, Thermal mass flow meters, Cone Meters, Nutating disk meter, Mechanical flow meters, analog flow meter, Digital flow meters, Woltmann meter, Paddle wheel meter, Multiple jet meter, Differential Pressure Flowmeters, Positive Displacement flow meter, Open Channel Meters, swirl flowmeter, Target flow meters, Propeller meters, Material Flow meter dibuat berdasarkan aplikasi yang didasarkan pada jenis fluida dan kondisi lingkungan sehingga dari segi material ada beberapa jenis flow meter yaitu PVC Flow meter, Carbon steel flow meter, plastic bodied flow meter, stainless steel flow meter, Flow Sight Glass, alumunium flow meter dan brass flow meter.
Sedangkan cara assembly dan installasi flow meter dapat digolongkan dalam inline flow meter, flange flow meter, sanitary fitting flow meter, clamp on flow meter, saddle fitting flow meter, insert flow meter, tread flow meter, wafer type flow meter, portable flow meter, hand held flow meter dan wall mount flow meter. Istilah-istilah yang berhubungan dengan flow meter yand didasrkan pada jenis, fungsi dan kegunaan flow meter dilapangan cukub beragam yaitu flow meter analog, flow transmitter, low flow meter, flow indicator, flow sensor, sight flow, manual flow meter, installasi flow meter, recorder, temperature, flow rate, display, Low Flow Cutoff, Measuring Range, flow totalizer, Repeatability, Pulse Output, Pulse Rate, meteran air, meteran solar, harga flow meter, jenis flow meter, fungsi flow meter, flow meter adalah, cara kerja flow meter, kalibrasi flow meter, Accuracy, Flange Type, Fluid Viscosity, Pressure Drop, Local Display, compact, integral, remote, split, electrode, turbine, liner material, flow meter types, turbine flow meter, diesel flow meter, magnetic flow meter, gas flow meter, oil flow meter, air flow meter, hydraulic flow meter,
Begitu banyak manufacture flow meter baik dari flow meter korea, japan flow meter, USA flow meter dan lainnya, Flowmeter wiratama merupakan distributor flow meter alia dan Filstronic Korea Flow Meter juga mampu menyediakan flow meter dari berbagai brand dan manufacture seperti a kirchner & tochter, aalborg, Actaris, Alderley, alnor( tsi) , aquametro, asahi, ateq, ATG, avery hardor, Blancett, blue-white, bopp & reuther, Bristol babcock, clement clarke, CNG Dispenser Gasoline, Dispensing Pump LPG Dispenser, CoolPoint, crown, daniel, Daniel Brooks, dwyer, Dynasonics DUFX1-D1, TFX, DTFXP, D90, D902, S33, TFXD, DTFXD, DTT, DTUFX-D1, D002-2007-001,
