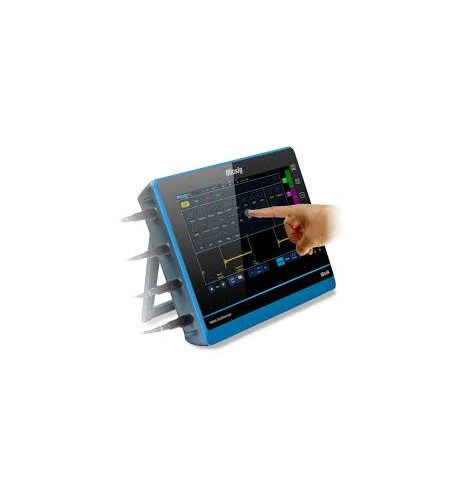

Micsig tBook TO204I 4 Channel 200MHz Tablet Oscilloscope

Update Terakhir
09-08-2016
Dilihat Sebanyak
48 kali
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi Micsig tBook TO204I 4 Channel 200MHz Tablet Oscilloscope

 With a sample rate of 1GS/s and a 8 bit vertical resolution, the Micsig TO204I delivers the functionality of a bench top scope with the added benefit of portability. The Micsig TO204I Tablet Oscilloscope can incorporate various math and trigger functions, as well as FFT filtering for waveform analysis. Supplied with a built-in 4GB memory, supporting external USB storage, the Micsig TO204I is ideal for both industrial and academic use.

The MIcsig TO204I is a four channel oscilloscope with a bandwidth of 200MHz for users who require a high end unit with extra inputs and features.

The intuitive capacitive touch screen allows the user to use on screen gestures to manipulate waveforms with the same type of gestures found on a smartphone or tablet, making this oscilloscope easy to use. Additionally the tBook series also supports a USB mouse input enabling a speedy and familiar method of operation. With 31 kinds of auto measurement, all measurement functions can be found in one interface.



Key Features:

  • 10.1" 1024 x 600 High Resolution Capacitive Touchscreen
  • 4 Input Channels
  • 200 MHz Bandwidth
  • 1 GSa/s real time sample rate
  • Up to 18Mpts memory depth with 500,000wfm/s max waveform capture rate
  • 8 bit vertical resolution
  • 2ns/div to 1000s/div time base range
  • 1.75ns Risetime
  • Math function
  • 31 types of auto measurements
  • Full touch screen operation with USB mouse input
  • Various types of trigger such as edge, pulse, logic, time out, Dwart PW, slope, N Edge, video
  • High capacity battery option
  • Lightweight - Only 1.77kg without battery
