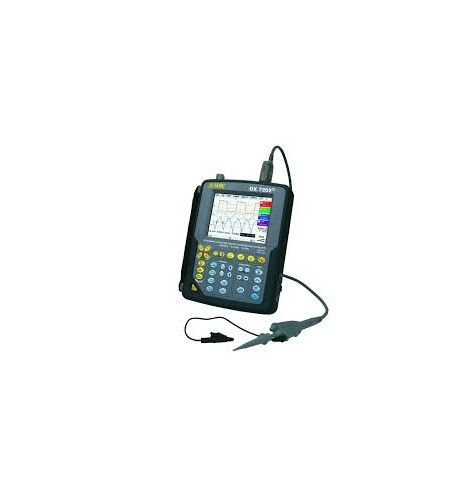

AEMC OX7202 III 2 Channel 200MHz Hand Held Oscilloscope Kit
Perhatian!
Spesifikasi AEMC OX7202 III 2 Channel 200MHz Hand Held Oscilloscope Kit
Features:
- NEW – Special version for electronic application, 200MHz bandwidth
- NEW – Improved Web Server (FTP server/client) with cursors and automatic measurements
- NEW – Ampflex® and MiniFlex® sensors, powered by the instrument (200kHz and 3MHz @ -3db bandwidth)
- NEW – Power measurement option included for your power measurements
- 2 isolated measurement channels (600V CAT III) with up to 8 traces on screen
- 5 complementary tools in a single instrument: Oscilloscope, FFT Analyzer, Multimeter/Wattmeter, Harmonic Analyzer on voltage/current/power and Recorder
- Sampling rate 2.5GS/s in one-shot mode and 100GS/s in ETS mode (repetitive signals)
- 2 or 4 independent TRMS digital multimeters (8000 counts, 100kHz)
- LCD touch screen and Windows-like menus on screen
- Probix “plug & play” input terminals and smart sensors include auto recognition and calibration
- Standard “real-time” FFT analysis and calculation functions on channels
- Multi-interface communication connectors: Serial USB, and Ethernet
- Memory depth of up to 100,000 points per channel (Oscilloscope and Recorder modes)
- Triggering on measurement thresholds in Oscilloscope and Multimeter modes
- Adapter for measuring up to 700VAC RMS 1000VDC in meter mode
Applications:
- On-site contractor maintenance - industrial or electronic
- Internal plant maintenance
- Installations and start-up
- Industrial process
- Quality control
- Research and laboratory - engineers or technicians
- Field service
