WTW DIQ/S 282/284
Perhatian!
Spesifikasi WTW DIQ/S 282/284
- All parameters available (O2, NH4, NO3, COD, PO4, sludge level, …)
- USB-interface and internal data logger by default
- Convenient and available anytime via Ethernet-interface
All parameters at a glance:

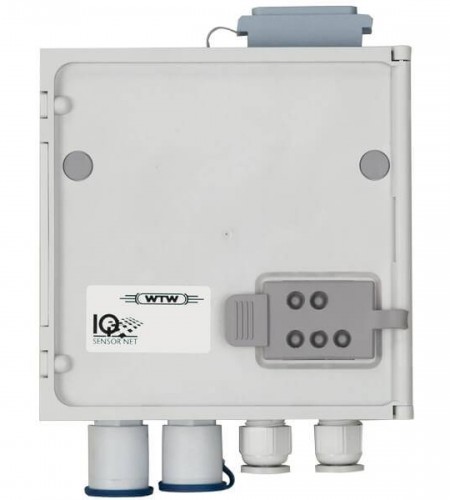

The new controller DIQ/S 282/284 is available as 2- (DIQ/S 282) or 4-channel-version (DIQ/S 284). Besides the reagent-free measurement of COD, all other parameters needed for a wastewater treatment plant can be measured. By the combination of multi-parameter sensors, up to 20 parameters can be measured and displayed simultaneously.
Up-to-date, safe and independent:
All versions include an USB-interface and an internal data logger by default. Thereby, your valuable data and system configurations can be stored quick and easy. Stay up-to-date with our software updates free of charge and improve your controller for upcoming measurement tasks.
Convenient and available at any time:
Via the connection to the internet you can access your IQ Sensor Net anytime and anywhere. Monitoring and support from remote saves time, money and nerves. Via the RS 485- and Ethernet- interfaces, the fieldbuses PROFIBUS, Modbus RTU, Ethernet/IP, Modbus TCP and PROFINET are available.
Easy replacement:
The DIQ/S 282/284 is compatible to almost all currently available components of the IQ Sensor Net.
Variations
| Product | Description | Order number | ||
|---|---|---|---|---|
| All versions available for 24 V AC/DC | ||||
| DIQ/S 282-CR3 | Controller for up to 2 IQ sensors, with 3 Relays, with 3 mA-outputs, 100 … 240 VAC |
472110 | ||
| DIQ/S 282-PR | Controller for up to 2 IQ sensors, with 3 Relays, with PROFIBUS-interface (RS 485), 100 … 240 VAC | 472111 | ||
| DIQ/S 282-MOD | Controller for up to 2 IQ sensors, with 3 Relays, with MODBUS-interface (RS 485), 100 … 240 VAC | 472112 | ||
| DIQ/S 282-CR3-E | Controller for up to 2 IQ sensors, with 3 Relays, with 3 mA-outputs, with Ethernet-interface (RJ 45) for network connection, 100 … 240 VAC | 472113 | ||
| DIQ/S 282-EF | Controller for up to 2 IQ sensors, with 3 Relays, with Ethernet-interface (RJ 45) for network connection and fieldbuses (Ethernet/IP, Modbus TCP, PROFINET), 100 … 240 VAC | 472114 | ||
| DIQ/S 284-CR6 | Controller for up to 4 IQ sensors, with 6 Relays, with 6 mA-outputs, 100 … 240 VAC |
472130 | ||
| DIQ/S 284-PR | Controller for up to 4 IQ sensors, with 3 Relays, with PROFIBUS-interface (RS 485), 100 … 240 VAC | 472131 | ||
| DIQ/S 284-MOD | Controller for up to 4 IQ sensors, with 3 Relays, with MODBUS-interface (RS 485), 100 … 240 VAC | 472132 | ||
| DIQ/S 284-CR6-E | Controller for up to 4 IQ sensors, with 6 Relays, with 6 mA-outputs, with Ethernet-interface (RJ 45) for network connection, 100 … 240 VAC | 472133 | ||
| DIQ/S 284-EF | Controller for up to 4 IQ sensors, with 3 Relays, with Ethernet-interface (RJ 45) for network connection and fieldbuses (Ethernet/IP, Modbus TCP, PROFINET), 100 … 240 VAC | 472134 | ||
