WTW MIQ modules for system expansion
Perhatian!
Spesifikasi WTW MIQ modules for system expansion
- Simple system expansion - removal possible from any location
- The two-wire technology or stacking technique makes the installation extremely easy
- The integrated lightning protection ensure high operational safety in any weather
The expansion modules are required to connect the IQ sensors as well as for the branching of the system. Here, we offer a passive module "Junction box" (MIQ/JB) with four equal IQ Sensor Net connections as well as a module with active repeater function to prepare the signal for very long cable distances "Junction Box Repeater“ (MIQ/JBR). Total cable lengths of up to 3 km (for the system 2020) are thus possible.

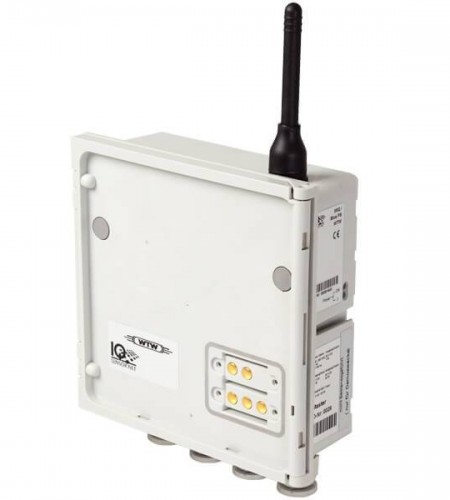

With the MIQ/WL PS SET, we can even offer you modules for the wireless connection in your IQ Sensor Net. Once it has been installed, your radio system can be expanded with additional radio paths (with single module MIQ/WL PS).
Variations
| Model | Description | Order no. |
|---|---|---|
| MIQ/JB | Modul IQ/Junction Box, for system branching, for system 2020 XT and 282/284, 4 free IQ SENSOR NET connections | 480008 |
| MIQ/JBR | Modul IQ / Junction Box Repeater, for system branching, for system 2020 XT and 282/284, with active signal preparation | 480010 |
| MIQ/WL PS SET | 2 MIQ/WL PS radio modules, preconfigured as master and slave, ready to operate | 480025 |
| MIQ/WL PS | 1 MIQ/WL PS radio module, preconfigured as a slave to expand a radio network | 480023 |
