Jual Total Station Topcon ES 105
Perhatian!
Spesifikasi Jual Total Station Topcon ES 105

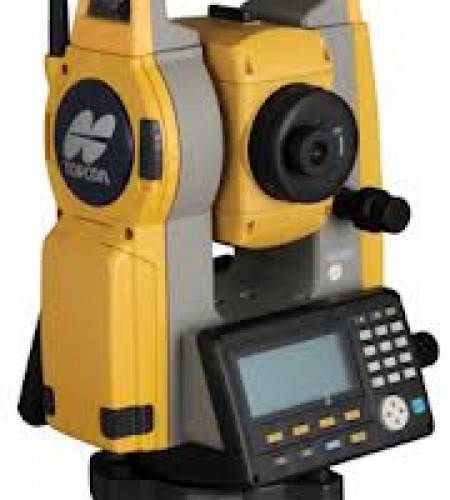

Total Station Topcon ES 105 Product Information and Details
Topcon’s new ES Series Total Stations – New Advanced Design with Superior Technology
Product description The new Total Station Topcon ES Series was designed from the ground up to deliver the very latest technology advantages, all in a small, sleek design – you’ll appreciate the advantages from the very first measurement.
Featuring a class leading EDM unit, the ES is able to measure up to 4,000m to standard prisms, and can measure in reflectorless mode up to 500m at an incredible 3mm + 2ppm accuracy.
Measurements are carried out faster than ever, and at 15mm (over 30m), the bright red laser dot pinpoints features with ease.
World’s First TSshield™ Remote Security and Notification System
* Disable your instrument remotely if lost or stolen
* Get notified of Firmware updates
* Online instrument operational history
* See more here…
Ultra-Powerful, Advanced EDM
* 500m non-prism range
* 4000m prism range
* Less than 1 second fine measurement
The exclusive LongLink™ communications functionality in every ES Series
model provides operational capabilities never before offered in a manual total
station. With a 300m range wireless communication using Bluetooth Class
1 technology, you can now operate the data collector from the “smart-spot”
of the crew, the prism pole. Also referred to the two-man, economical robot
solution, Topcon’s new LongLink™ technology brings a whole new level of
flexibility to your manual field crew.
Advanced Angle Encoder System
* “Best in Class” 1” angle accuracy available
* Incorporates exclusive IACS (Intelligent Automatic Calibration System) on 1” & 2” models
Ultimate in Rechargeable operation – 36 Hours!
* Up to 36 hours of operation on a single charge.*1
* Eliminates the need for nightly recharging and carrying extra batteries.
* Work with confidence all day without the worry of dead batteries.
Rugged, Waterproof Design
* Waterproof/Dustproof IP66 design handles the toughest environments
* Magnesium-alloy housing providing stable angle accuracy Completely
Easy Access USB 2.0 Memory
* Up to 8MB storage
* Environmentally protected
* Compatible with industry standard accessories and cables
*1 Operating time may vary depending on environmental conditions and type of work being performed.
QUICK Specifications
Angle Measurement
Min. Resolution/Accuracy
ES-101 0.5”/1”
ES-102 1”/2”
ES-103 1”/3”
ES-105 1”/5”
ES-107 1”/7”
IACS (Independent Angle Calibration System) Standard om 1” & 2” models
Compensation Dual-axis compensator
Distance Measurement
Prism EDM Range 4000m (ES-107 3000m)
Prism EDM Accuracy 2mm+2ppm
Non-Prism Range 500m
Non-Prism Accuracy 3mm+2ppm (0.3-200m)
Measuring Time Fine: 0.9 sec
Rapid: 0.7 sec
Tracking: 0.3 sec
Communications
LongLink™ rover communications utilizing Class 1 Bluetooth
USB 2.0 Slot
RS-232C Serial
General
Display/Keyboard Dual, Graphic, Backlit
LCD (ES-107 Single)
Battery Operation up to 36 hours
Dust/Water Protection IP66
Wireless Connection Bluetooth Class 1
Operating Range -20C to +50C
-30C to +50C *
-20C to +60C **
Available Accessories:
• Unit Topcon Totalstation
• 2 x Aluminum Tripod
• 1 x Prisma Polygon
• 1 x Range Pole
• 1 x Single Prism
• 1 x Cable Data
• 1 x Software Data
