Spesifikasi WTW DIQ/S 282/284 – our system for small- and middle-sized wastewater treatment plants


  • All parameters available (O2, NH4, NO3, COD, PO4, sludge level, …)
  • USB-interface and internal data logger by default
  • Convenient and available anytime via Ethernet-interface


All parameters at a glance:

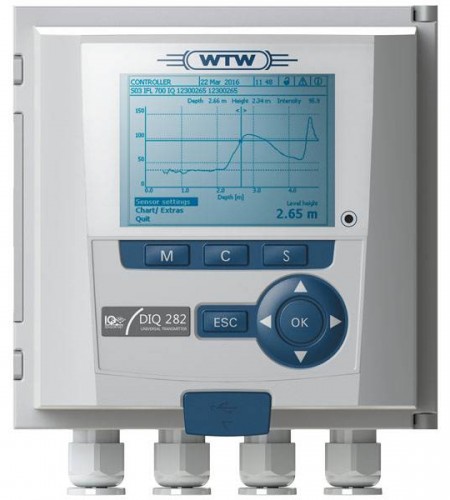

The new controller DIQ/S 282/284 is available as 2- (DIQ/S 282) or 4-channel-version (DIQ/S 284). Besides the reagent-free measurement of COD, all other parameters needed for a wastewater treatment plant can be measured. By the combination of multi-parameter sensors, up to 20 parameters can be measured and displayed simultaneously.

Up-to-date, safe and independent:

All versions include an USB-interface and an internal data logger by default. Thereby, your valuable data and system configurations can be stored quick and easy. Stay up-to-date with our software updates free of charge and improve your controller for upcoming measurement tasks.

Convenient and available at any time:

Via the connection to the internet you can access your IQ Sensor Net anytime and anywhere. Monitoring and support from remote saves time, money and nerves. Via the RS 485- and Ethernet- interfaces, the fieldbuses PROFIBUS, Modbus RTU, Ethernet/IP, Modbus TCP and PROFINET are available.

Easy replacement:

The DIQ/S 282/284 is compatible to almost all currently available components of the IQ Sensor Net.




Variations

Product Description Order number
All versions available for 24 V AC/DC
DIQ/S 282-CR3 Controller for up to 2 IQ sensors, with 3 Relays, with 3 mA-outputs,
100 … 240 VAC
472110
DIQ/S 282-PR Controller for up to 2 IQ sensors, with 3 Relays, with PROFIBUS-interface (RS 485), 100 … 240 VAC 472111
DIQ/S 282-MOD Controller for up to 2 IQ sensors, with 3 Relays, with MODBUS-interface (RS 485), 100 … 240 VAC 472112
DIQ/S 282-CR3-E Controller for up to 2 IQ sensors, with 3 Relays, with 3 mA-outputs, with Ethernet-interface (RJ 45) for network connection, 100 … 240 VAC 472113
DIQ/S 282-EF Controller for up to 2 IQ sensors, with 3 Relays, with Ethernet-interface (RJ 45) for network connection and fieldbuses (Ethernet/IP, Modbus TCP, PROFINET), 100 … 240 VAC 472114
DIQ/S 284-CR6 Controller for up to 4 IQ sensors, with 6 Relays, with 6 mA-outputs,
100 … 240 VAC
472130
DIQ/S 284-PR Controller for up to 4 IQ sensors, with 3 Relays, with PROFIBUS-interface (RS 485), 100 … 240 VAC 472131
DIQ/S 284-MOD Controller for up to 4 IQ sensors, with 3 Relays, with MODBUS-interface (RS 485), 100 … 240 VAC 472132
DIQ/S 284-CR6-E Controller for up to 4 IQ sensors, with 6 Relays, with 6 mA-outputs, with Ethernet-interface (RJ 45) for network connection, 100 … 240 VAC 472133
DIQ/S 284-EF Controller for up to 4 IQ sensors, with 3 Relays, with Ethernet-interface (RJ 45) for network connection and fieldbuses (Ethernet/IP, Modbus TCP, PROFINET), 100 … 240 VAC 472134
