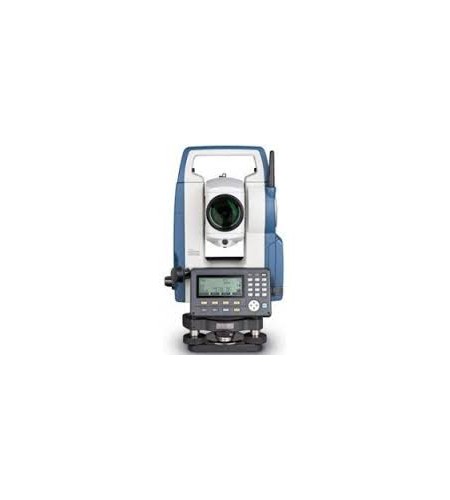

Jual Total Station Sokkia CX-103

Total Station Sokkia CX 103, 3 Second Reflectorless

Achieve extraordinary levels of accuracy and productivity with the Sokkia CX103 Reflectorless Total Station ( 3-Second) . With outstanding features like the fast and powerful EDM, long range Bluetooth wireless communication, advanced angle measurement, and TsShield security system, you will be able to attain top-notch survey measurement results in less time than ever before.
Reflectorless Operation

Measure reflectorlessly from a distance of up to 1, 640 feet with only 3-second accuracy with the Sokkia Surveying Total Station. Thanks to the Sokkia CX103, you can measure safely and easily to bridges, scaffolding or power lines using the total station’ s precise reflectorless measurement. If the job requires it, you can also add a single or triple prism to increase the measuring range to over 16, 000 feet.

Both reflectorless and prism measurements feature the unique pinpoint precision of the Sokkia Total Station. The optical laser relies on a coaxial EDM beam and is able to rapidly measure to corners and walls, as well as through chain-link fences and around tree branches with complete precision. Sokkia total stations also feature the fastest measurement time in their class, guaranteeing fast aim.
Long-Range Bluetooth Technology

Bluetooth wireless technology enables communication with the Sokkia Total Station at up to 980 feet. The ability to wirelessly connect to a data collector, PC or laptop on site not only allows you to process data while still on the job but also ensures rapid job completion.
Advanced Security and Maintenance

TsShield, the world’ s first integrated support station, lets you work securely knowing your Sokkia CX Total Station is safe from theft or  unauthorized usage. Simply access Sokkia’ s Cloud-based server from any location in the world to deactivate the total station.

Sokkia’ s Cloud-based server also allow you to remotely check if the total station is being used efficiently by notifying you when new firmware or software updates are available.
User-Friendly Features

The Sokkia Total Station offers you a full range of advanced features that make using your surveying experience a pleasure. The 25-key alphanumeric keyboard allows you to enter information as numbers, symbols, and letters and gives the user access to frequently used functions through the one-touch star key. The Sokkia CX also has a handy trigger key that lets you take rapid measurements without looking away from the telescope.

The large LCD control screen is backlit and easy to read so that you can use the total station even in dim lighting conditions. Plus, the dual-display screens let you view your results from nearly every angle without rotating the total station.

Setup is quick and easy with the laser plummet and telescope guide light. The laser plummet provides rapid and precise positioning over the setup point, and with five levels of brightness, no need to worry about centering the total station in dark or dim lighting conditions. You will also appreciate the unique telescope guide light, which allows the prism holder to easily center the prism up to a distance of nearly 500 feet. The rod man simply adjusts the position of the prism based on the red and green guide lights, for optimal prism placement.
Built to Last

An IP rating of 66 makes the Sokkia CX Reflectorless Total Station one of the highest rated in the industry. It can not only handle major water and dust exposure, but the metal chassis and heavy duty handle mean it’ s built to last. The 36-hour Li-Ion battery is an extra bonus, ensuring there is always enough power to get the job done.
Improve Productivity

Complete measurements quickly with Sokkia’ s powerful onboard computer. With just a few buttons, you can calculate offset and missing line measurements, coordinate measurements, setting out line and arc, surface arc and much more. At the same time, the Independent Angle Calibration System provides consistent and reliable three second measurement and can also measure the horizontal angle between two points and set the angle to a required value.

Store a nearly endless amount of points with your choice of products. Choose from the 10, 000 point internal memory or the included 8GB industrial memory stick. When the job is done, you can use a Bluetooth wireless connection, a USB port or an optional data cable to make your data available for a variety of software applications.

With the Sokkia CX103 Reflectorless Total Station ( 3-Second) , sophisticated features like the powerful EDM, the TsShield security system and long range Bluetooth wireless communication ensure your company can focus on being a leader in providing quality surveying services.

Features for the Sokkia CX 103, 3 Second Reflectorless Total Station :

* 3-second accuracy
* 10, 000-point internal memory
* 1, 640 foot range
* Long-range Bluetooth
* Laser plummet features five levels of brightness
* Coaxial laser pointer
* USB and RS232 serial port
* Advanced security and maintenance with TSshield
* Trigger key for taking measurements quickly
* 36-hour battery life
* Water resistant and dustproof to IP-66
* Dual graphic LCD display
