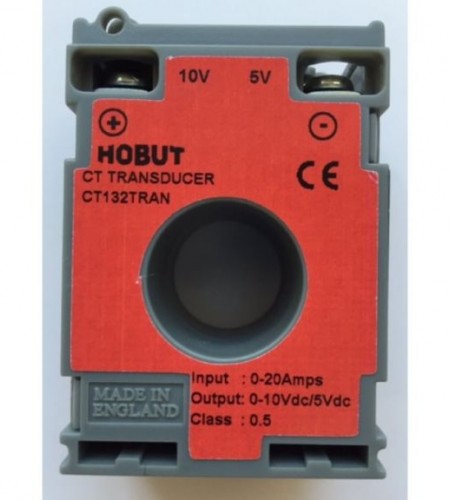

CAMAX Hobut CT132TRAN Current Sensor/Current Transducer

Update Terakhir
15-08-2016
Dilihat Sebanyak
127 kali
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi CAMAX Hobut CT132TRAN Current Sensor/Current Transducer

  • Wiring: 2 wire system
  • Aperture: 21mm
  • Width: 45mm
  • Height: 65mm

Product Details

Camax are now supply Hobut 132RTRAN Current Sensors/Current Transducers for 10 - 150A AC inputs for DC signals.

This version of CT requires a minimum of  a 24V power supply for class 0.5 accuracy

  • Aperture: 21mm
  • Width: 45mm
  • Height: 65mm

Product Specification

  • Accuracy: Class 0.5, EN 60688
  • Response Time: 200msec
  • Output: 5V/10V DC (Self-powered) - 100k ohms min load
  • Temperature Range: -15 C to + 50 C
  • Isolation: 4kV 50Hz (1sec)
  • Operating Range: 0-120% nominal full scale
  • Frequency Range: 45/65Hz


Tampilkan Lebih Banyak
