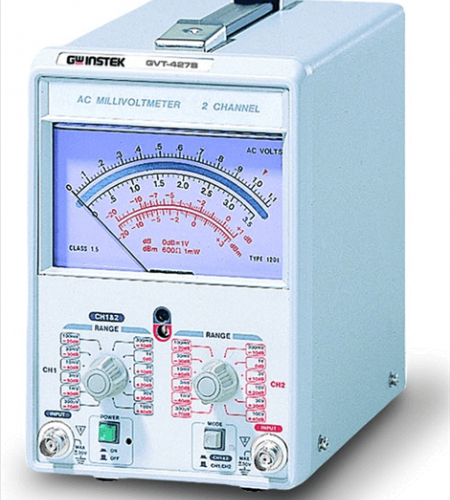

GW INSTEK GVT-427B & GVT-417B

Update Terakhir
22-08-2016
Dilihat Sebanyak
80 kali
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi GW INSTEK GVT-427B & GVT-417B


INPUT
Voltage Range 300μV ~ 100V in 12 ranges
Decibel Range -70dB ~ -40dB in 12 ranges
Accuracy ±3% of full scale
Operating Mode GVT-427B : Ch1 and Ch2 separately or simultaneously at Ch1
GVT-417B : one Ch1 only
Frequency Response 20Hz ~ 200kHz ±3%, 10Hz ~ 1MHz ±10%
(Reference 1kHz)
Impedance 10MΩ, approx. 40pF
OUTPUT
Level Approx. 0.1Vrms at full scale
Distortion < 2%
POWER SOURCE
  AC 115V/230V ±10%, 50/60Hz
DIMENSIONS & WEIGHT
  130(W) × 210(H) × 295(D) mm
Approx. 2.8kg


Features
  •
    300μV Full Scale Sensitivity
  •
    Measurement Frequency: 10Hz ~ 1MHz
  •
    Measurement Amplitude: -70dB ~ +40dB in 12 Ranges
  •
    Dual Channel (GVT-427B)
  •
    CE Approved (GVT-417B)
