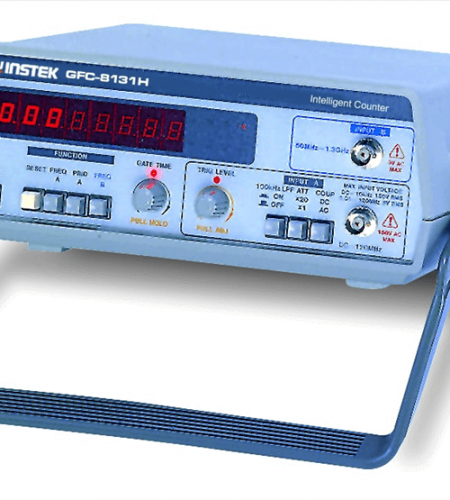

GW INSTEK GFC-8270H & GFC-8131H

Update Terakhir
22-08-2016
Dilihat Sebanyak
67 kali
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi GW INSTEK GFC-8270H & GFC-8131H


DISPLAY
  8 digits with Hz, kHz, MHz, GHz, s, ms, μs, and overflow
GATE TIME
  Variable from 10ms to 10s, or 1 period of input depending on whichever is greater
ACCURACY
  ±(resolution ± timebase error)
CHANNEL A
Range DC coupling: 0.01Hz ~ 120MHz
AC coupling: 30Hz ~ 120MHz
Sensitivity 10mV typical, 50mV maximum
Coupling AC or DC, selectable
Filter Low pass, selectable in or out for channel A
(-3dB point, nominal 100kHz)
Impedance 1MΩ // 40pF
Attenuator 1/1 or 1/20dB
Trigger Level -2.5VDC ~ +2.5VDC
Adjustment Resolution For frequency measurement, the maximum resolution is 100nHz for 1Hz and 0.1Hz for 100MHz inputs respectively.
For period measurement, the maximum resolution is 10ns for 1Hz input, and 0.1x10-15s for 100MHz inputs respectively.

Display Accuracy 7 digits for 1 sec gate time
6 digits for 100ms gate time
5 digits for 10ms gate time
Period Range 8ns ~ 100ns (at least 7 digits displayed per gate time)
CHANNEL B
Range 50MHz ~ 2.7GHz for GFC-8270H
50MHz ~ 1.3GHz for GFC-8131H
Sensitivity <50mVrms (10mVrms typical) for GFC-8270H
<40mVrms (10mVrms typical) for GFC-8131H
Coupling AC only
TIME BASE
Aging Rate 1ppm per month
Temperature 5ppm, 23°C + 5°C
Line Variation 0.005ppm for + 10% variation
POWER SOURCE
  AC 100V/120V/220V/230V ±10%, 50/60Hz
DIMENSIONS & WEIGHT
  230(W) × 95(H) × 280(D) mm
Approx. 2.2kg


Features
  •
    Frequency and Period Measurement
  •
    High Resolution at Both High and Low Frequency
  •
    0.01Hz~2.7GHz Frequency Range(GFC-8270H)
  •
    0.01Hz~1.3GHz Frequency Range(GFC-8131H)
  •
    10mV rms High Sensitivity
  •
    100nHz Resolution for 1Hz Input
  •
    Variable Trigger Level Control
  •
    Microprocessor Controlled Intelligent Counter(only GFC-8270H)
