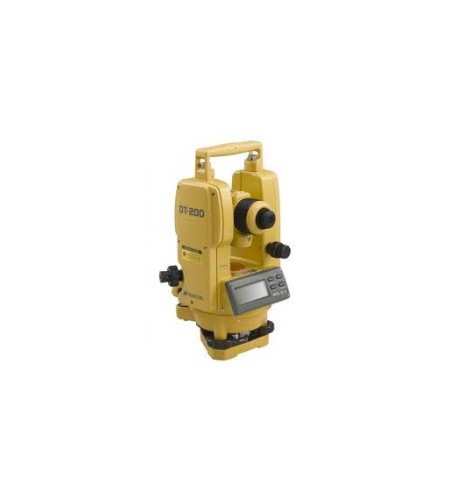

Digital Theodolite Topcon DT 205 / DT 205L
Features:
• 140+ hours of operation in Angle Measurement Mode on 4AA batteries – better than any other model!
• Unmatched speed and accuracy
• Vertical angle correction provides ±5″ accuracy
• Large, high-contrast, back lit LCD display
• Compact, lightweight, sets up in seconds
• Simple operation – single side display
• Removable handle
• 360° rotating telescope
• Dual quick-sights: top and bottom of telescope
• Water and dust proof
• Built-in tribrach with bubble vial
The DT-200 series integrates the same high-quality advanced absolute circle reading technology found in Topcon’s high-performance total station products for more accurate field calculations; and they continue to deliver the highest quality optics and electronics you expect to find in Topcon theodolites.
DT-200 Series Features:
* Long Battery Life
* Waterproof and Dustproof Digital Theodolites
Available in three affordable models delivering 5″, 7″, or 9″ angle accuracy, there is a DT-200 theodolite perfect for any job. Like the DT-100 series, the DT-200 sereies weathers any wet or dust conditions in the field, allowing for a more productive day during inclement weather. All models are also compact and lightweight for easy portability; and their simple operation provides precise measurement in a functional, hassle-free package.
Specifications
Telescope
Length 149 mm
Objective lens 45 mm
Magnification 30x power
Field of view 1°30’
Resolving power 2.5 power
Minimum focus 90 cm
Stadia ratio 100
Stadia constant 0
Sighting collimator Double
Electronic Angle Measurement
Method Absolute Reading
Detecting 2 horizontal sides, 1 vertical sides
Minimum reading 1″/5″ arc seconds, 0.2mgon/1mgon mgon
Accuracy 5 arc seconds, 71mm Diameter Circle
Display
sides 2
LCD 7 segments
Data Output
Serial signal connector RS-232C
Compensator
Tilt sensor Vertical
Compensating range ±3 ft
Optical Plummet Telescope
Magnification 3x power
Field of view 3° degrees
Level Sensitivity
Plate level 40°/2mm
Circular level 10°/2mm
Water Protection
Standard IP66 rating
Power Supply
Battery 4AA batteries
Operating time Alk.
Theodolite only 140 Hours
Environmental
Operating Temp -20 to +50 degrees C
