Digital Theodolite Topcon DT 207

Update Terakhir
24-05-2017
Dilihat Sebanyak
71 kali
Lokasi
Harga
Kontak Kami
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi Digital Theodolite Topcon DT 207

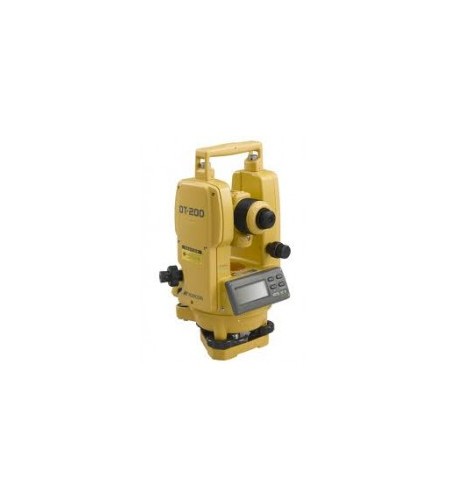

Digital Theodolite Topcon DT 207

Features:
• 150 hours of operation in Angle Measurement Mode on 4AA batteries – better than any other model!
• Unmatched speed and accuracy
• Vertical angle correction provides ±7″ accuracy
• Large, high-contrast, back lit LCD display
• Compact, lightweight, sets up in seconds
• Simple operation – single side display
• Removable handle
• 360° rotating telescope
• Dual quick-sights: top and bottom of telescope
• Water and dust proof
• Built-in tribrach with bubble vial

TECHNICAL SPECIFICATIONS
TELESCOPE
Length : 149 mm
Objective lens: 45 mm
Magnification : 30x power
Field of view : 1°30’
Resolving power : 2.5 power
Minimum focus : 90cm
Stadia ratio : 100
Stadia constant : 0
Sighting collimator : Double

ELECTRONIC ANGLE MEASUREMENT

Method : Absolute Reading
Detecting : 2 horizontal sides, 1 vertical sides
Minimum reading: 5″/10″ arc seconds, 1mgon/2mgon
Accuracy :7 arc seconds
Diameter Circle: 71mm

DISPLAY

Unit : 2 sides
OPTICAL PLUMMET TELESCOPE
Magnification : 3x power
Field of view : 3°
Focusing : 0.5m~∞
LEVEL SENSITIVITY
Plate level : 40°/2mm
Circular level : 10°/2mm
WATER PROTECTION: IP66 rating
POWER SUPPLY : 4AA batteries
OPERATING TIME : 150 Hours
OPERATING TEMPERATURE: -20 to +50 degrees C
WEIGHT : 9.0 pounds (4.1kg)

1x Unit Topcon DT-207
1x Alumunium Tripod
1x Levelling staff / Rambu Ukur
