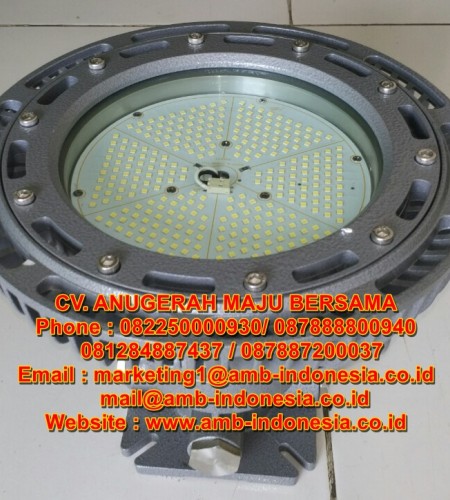

Lampu Led Explosion Proof Qinsun X1 UL Listed - UL844 - UL1589 High Bay Floodlight
Perhatian!
Spesifikasi Lampu Led Explosion Proof Qinsun X1 UL Listed - UL844 - UL1589 High Bay Floodlight
Jual Lampu Led Explosion Proof Qinsun X1 UL Listed - UL844 - UL1589 High Bay Flood Lighting Jakarta Indonesia
HAZARDOUS AREA QINSUN X1 SERIES LED HIGH BAY FLOODLIGHT EXPLOSION PROOF UL LISTED - UL844 - UL1598 - UL1598A - ATEX Certified
JAKARTA INDONESIA
Design Features
Unique tri-chamber structure : Independent chamber for LED module, driver and wiring, hight rellability and easy installation and maintance,.
Excellent heat sink performance : Lower LED and driver temperature, ensure longest service life.
Latest LED technology : Cree/Nichia hight efficiency LED, >140 lm/watt, fixture lumen effiency 115 lm/watt.
High rellability driver : Famous brand driver, high rellability, effecincy > 98%, design for harshest environments.
Wireless connection : All mounting modules are wireless connection, easy installation and maintenance.
Various mounting options : 7 types of mounting options wireless connection, easy wiring.
Certifications And Compliances
Exd IIC T5 Gb/Ext IIIC T100*C Db
Zone 1, 2, 21, 22
ATEX, IECEX certified
Class I, Div 2, Group A B C D
Class II, Div 1 & 2, Group E F G
Class III
UL844, UL1598A
CSA C22.2 No. 137
Ambient Temp : -40*C - +55*C
Type 4X, IP66
Electrical Ratings
Voltage : 100 - 277VAC, 347 - 480VAC, 50/60Hz
Input Power : 30W/3450 Lm, 50W/5750 Lm, 80W/9200 Lm, 100W/11500, 120W/13800 Lm, 150W/17250 Lm, 200W/23000 Lm, 240W/27600 Lm
Bean Angle : 45*/120*/Difused
Installation Type
Pendant / Wall 30* / Wall 90* / Stanchion 30* / Stanchion 90* / Bracket / Cone Pendant
Weight
30 - 100W + Huosing A = 6,5 kg
120 - 240W + Housing B = 9,32 kg
Luminaire Models
-----------------------------------------------------------------------------------------------------------------
Model No Rated Power Luminous Plux
X1 - 30W 30 Watt 3450 Lm
X1 - 50W 50 Watt 5750 Lm
X1 - 80W 80 Watt 9200 Lm
X1 - 100W 100 Watt 11500 Lm
X1 - 120W 120 Watt 13800 Lm
X1 - 150W 150 Watt 17250 Lm
X1 - 200W 200 Watt 23000 Lm
X1 - 240W 240 Watt 27600 Lm
----------------------------------------------------------------------------------------------------------------
