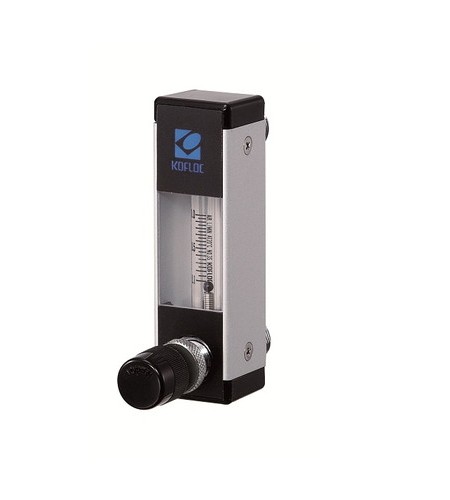

Purge Flowmeter With Needle Valve (for Scientific Instrumentation System) MODEL RK1650 SERIES
Perhatian!
Spesifikasi Purge Flowmeter With Needle Valve (for Scientific Instrumentation System) MODEL RK1650 SERIES
MODEL RK1650 SERIES
This is a completely renewed model of existing KOFLOC RK1600R with sophisticated design to fit sophisticated laboratory or plant equipment.
Features
-Compact
A compact flowmeter with variations of total length of 84 mm,104mm,124mm and 154mm for choice according to the user's needs
-Low pressure loss
Pressure loss minimized to allow applications for low supply pressure
-Superior stability
All tubes are precision-formed to provide the float with outstanding repeatability and stability
-Economical
A flowmeter at quite affordable price achieved through our all-out effort at streamlined design
Applications
-For environmental instrumentation systems
-For general instruments for analysis
-For purge systems
-For semiconductor manufacturing equipment
Standard Specifications
|
Fluids |
Air,N2,O2,H2,He,Ar,and CO2 |
|
Flow range(Full scale) |
1L,2L,3L,5L,10L,15L,20L/MIN |
|
Accuracy |
FS±5%(Measurement point) |
|
Proof pressure |
0.8MPa for 5L/MIN or less |
|
Available scale |
10:1 |
|
Materials |
S |
BS |
|
|
Body block and some other components |
SUS304; SUS303 |
Brass |
|
|
Tapered tube |
Pyrex®, glass |
||
|
Packing |
FKM |
NBR |
|
|
Float |
Pyrex,SUS316, glass |
||
|
Protective cover |
Acrylic resin |
||
|
(Temperature resistance) |
MAX60° |
||
|
Connection |
Rc1/8(Standard);Rc1/4(Optional) |
||
