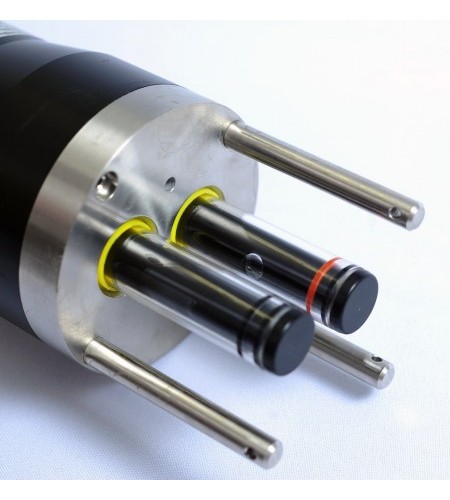

PARTECH TurbiTechw² HR Suspended Solids Sensor
Perhatian!
Spesifikasi PARTECH TurbiTechw² HR Suspended Solids Sensor
| Physical | |
|---|---|
| Dimensions (hxwxd) | Ø80mm, 470 mm long |
| Weight | 2.2 kg |
| Protection Class | IP68 |
| Enclosure Material | Black Acetal Co-Polymer, 316 Stainless Steel, Glass |
| Seal Material | Polyurethane, Nitrile, with option of Viton |
| Cable Entry | Integral Cable Gland |
| Cable Length | 10 metres standard, 100 metres maximum |
| Interface to Monitor | |
| Power Supply | 12 VDC from Monitor |
| Sensor Output | ModTechw², RS485 |
| Environmental Data | |
| Operating/Storage Temperature | 0 to 50ºC |
| Location | Indoor/Outdoor |
| Pressure Rating | 10 mWC |
| Maintenance | |
| Service | Seal Service every 3500 cleans (application dependent) |
| Calibration | The sensor is inherently stable, calibration should be carried out to suit the application. Our recommendation is every 6 months. |
