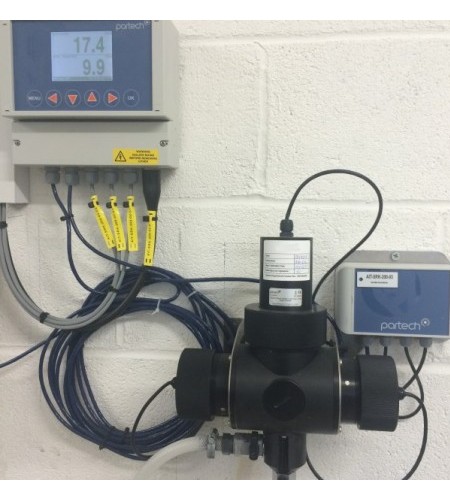

PARTECH ColTechw² Colour Sensor
Perhatian!
Spesifikasi PARTECH ColTechw² Colour Sensor
| Physical | |
|---|---|
| Dimensions (hxwxd) | 440 x 200 x 200 mm |
| Weight | 4.5 kg |
| Protection Class | IP68 |
| Enclosure Material | Black Acetal Co-Polymer, Polypropylene |
| Seal Material | Nitrile |
| Cable Entry | Integral Cable Glands |
| Cable Length | 5 metres standard, 100 metres maximum |
| Process Connections | Inlet and Drain: 1/2" BSP with 12 mm hosetail Outlet: 1/4" BSP with 8 mm hosetail |
| Interface to Monitor | |
| Power Supply | 12 VDC from Monitor |
| Sensor Output | ModTechw², RS485 |
| Environmental Data | |
| Operating/Storage Temperature | 0 to 50ºC |
| Location | Indoor/Outdoor |
| Pressure Rating | 1 Bar |
| Maintenance | |
| Service | Wiper and desiccant replacement every year (application dependent) |
| Calibration | The sensor is inherently stable, calibration should be carried out to suit the application. Our recommendation is every 6 months. |
