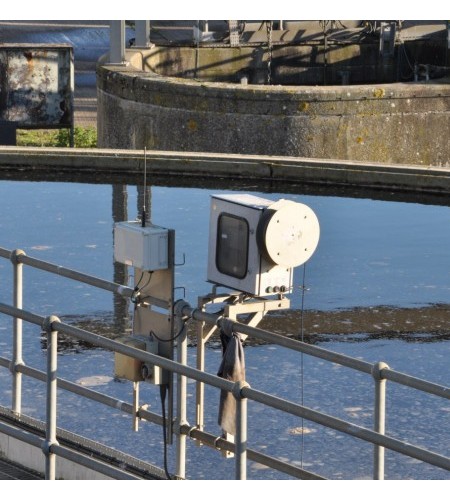

PARTECH ASLD2200 Sludge Blanket Monitor
Perhatian!
Spesifikasi PARTECH ASLD2200 Sludge Blanket Monitor
| Physical | |
|---|---|
| Dimensions (hxwxd) | 490 x 350 x 382 mm |
| Weight | 15 kg |
| Protection Class | IP55 Outer Enclosure with IP65 electronics housing |
| Enclosure Material | GRP Outer Enclosure with Polycarbonate inner |
| Cable Entry | 3x M20 |
| Cable Core Size | Max Conductor Size 2.5 mm² |
| Electrical | |
| Power Supply | 85 to 264 VAC 47-65 Hz |
| Power Rating | 25W |
| Environmental Data | |
| Operating/Storage Temperature | 0 to 50ºC |
| Location | Indoor/Outdoor |
| User Interface | |
| Display | 3 Digit, 7 Segment LED Display of 0-100% |
| Setup | Potentiometer and Push Buttons on main PCBA |
| Units of Measurement | %age Depth |
| Output Signals | |
| Analogue Output | 4-20 mA, max load 500 ohm |
| Relays | 1, set at 0 and 100% and is not adjustable |
| Contacts | Contact Closure, 0.55 A @ 100VDC |
| Local Annuication | 6 LED's on main PCBA |
