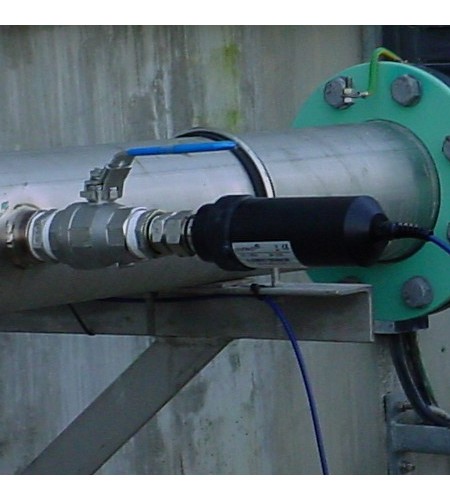

PARTECH IL55BV2 Suspended Solids and Sludge Density Sensor
Perhatian!
Spesifikasi PARTECH IL55BV2 Suspended Solids and Sludge Density Sensor
| Physical | |
|---|---|
| Dimensions (hxwxd) | 392 mm long |
| Weight | 4.2 kg, including Ball Valve and 10 metres of cable |
| Protection Class | IP68 |
| Enclosure Material | Black Acetal Co-Polymer, 316 Stainless Steel, Glass |
| Seal Material | Nitrile |
| Cable Entry | Integral Cable Gland |
| Cable Length | 10 metres standard, 100 metres maximum |
| Interface to Monitor | |
| Power Supply | 12 VDC from Monitor |
| Sensor Output | 0-5 mA |
| Environmental Data | |
| Operating/Storage Temperature | 0 to 50ºC |
| Location | Indoor/Outdoor |
| Pressure Rating | 2 BarG |
| Process Connection | |
| Normal Mounting | In-line via Mounting Boss or pipe section |
| Process Connection | 1 1/4" BSP Male or Flanges to suit pipeline |
| Minimum Pipe Size | 65mm Internal Diameter |
| Maintenance | |
| Service | Sensor cleaning is required at a frequency determined by site characterisitcs |
| Calibration | The sensor is inherently stable, calibration should be carried out to suit the application. Our recommendation is every 6 months. |
